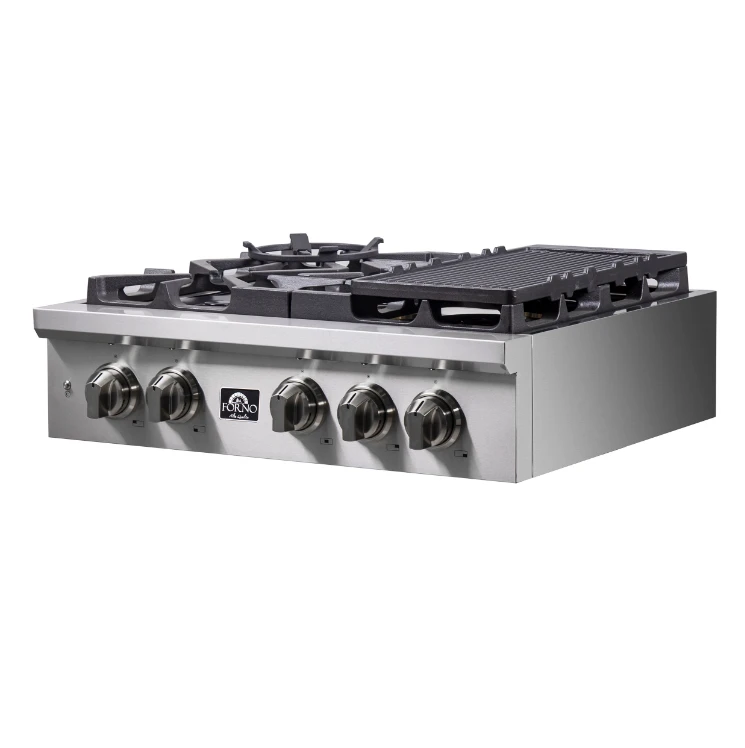

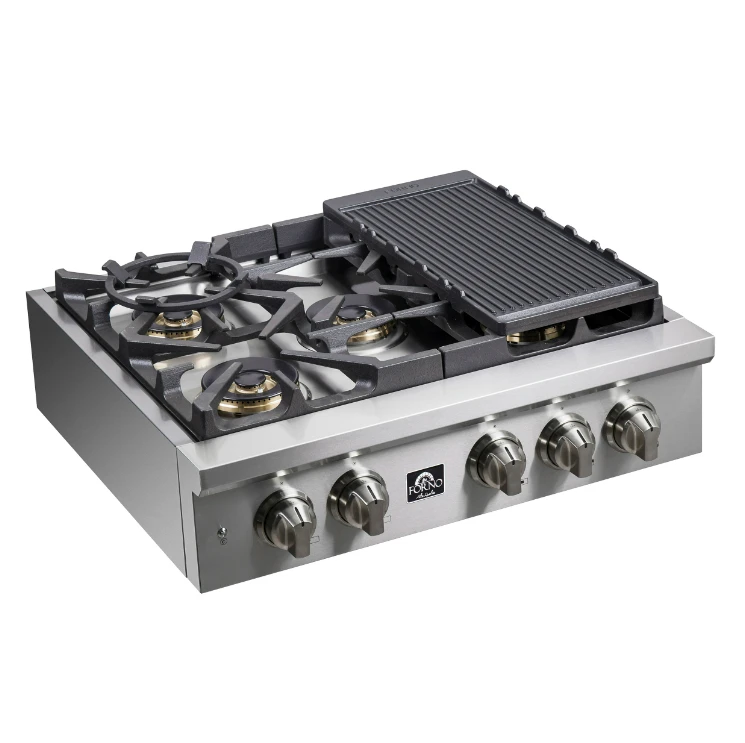

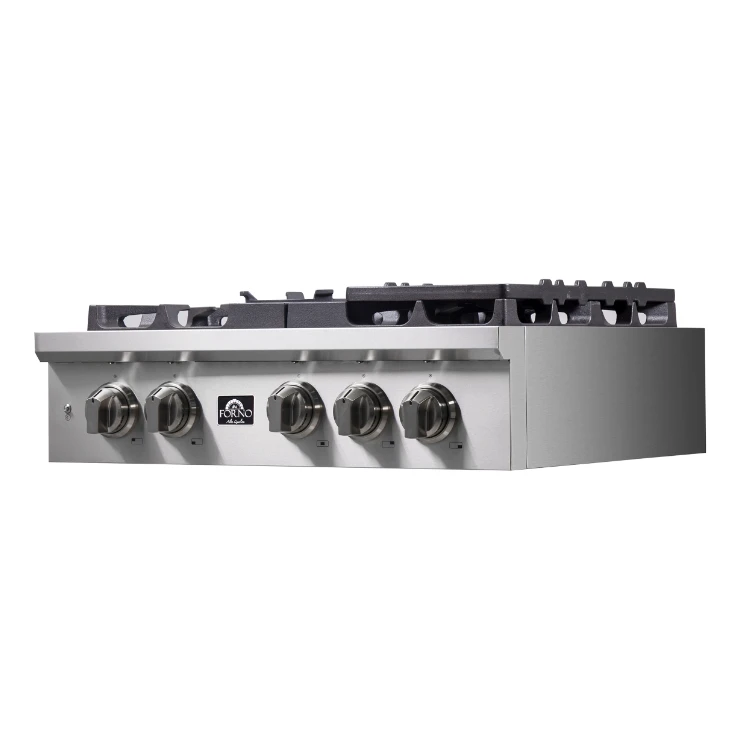

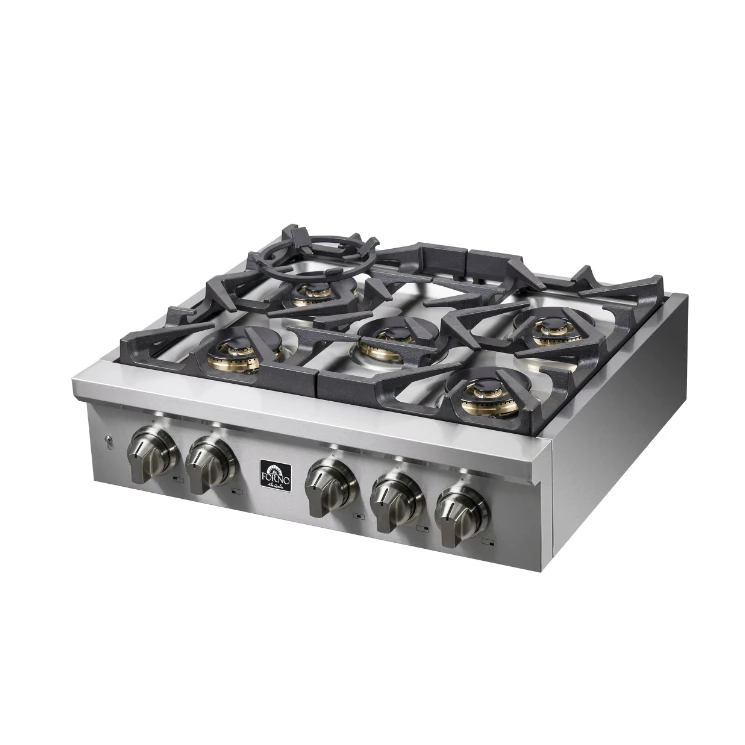

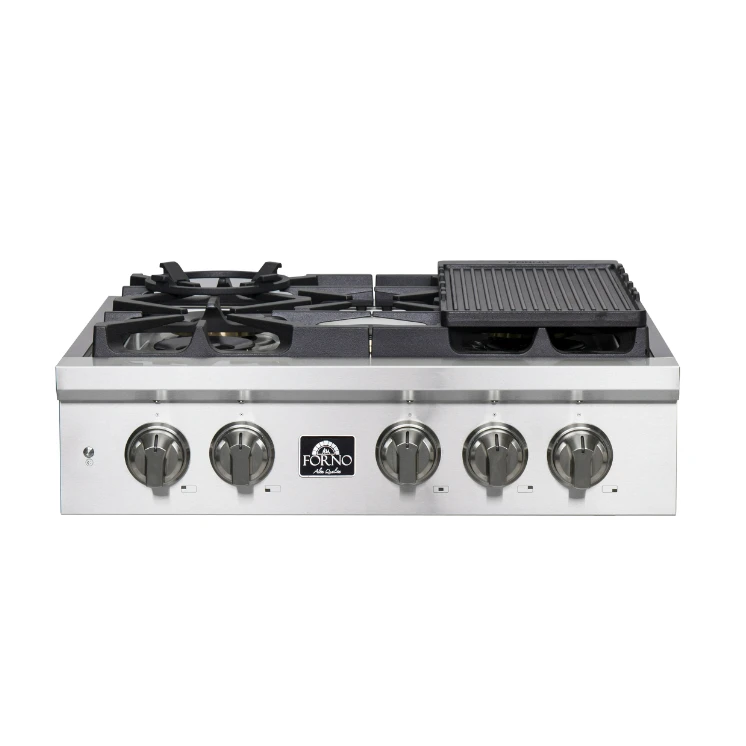

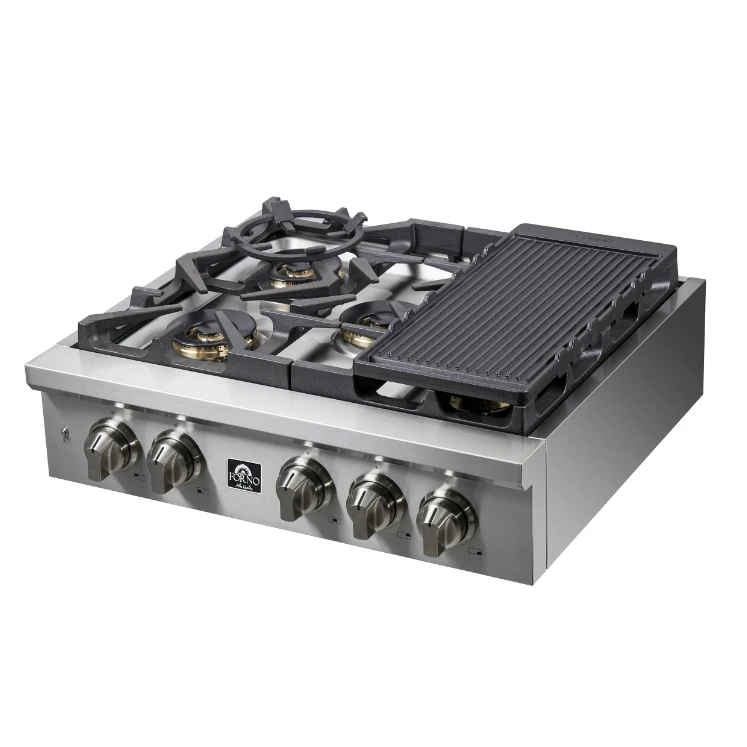

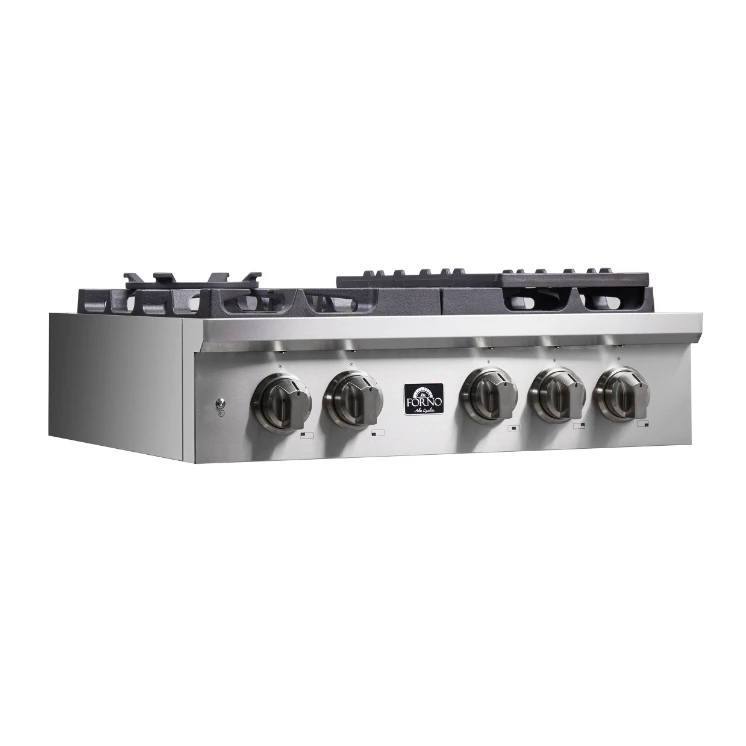

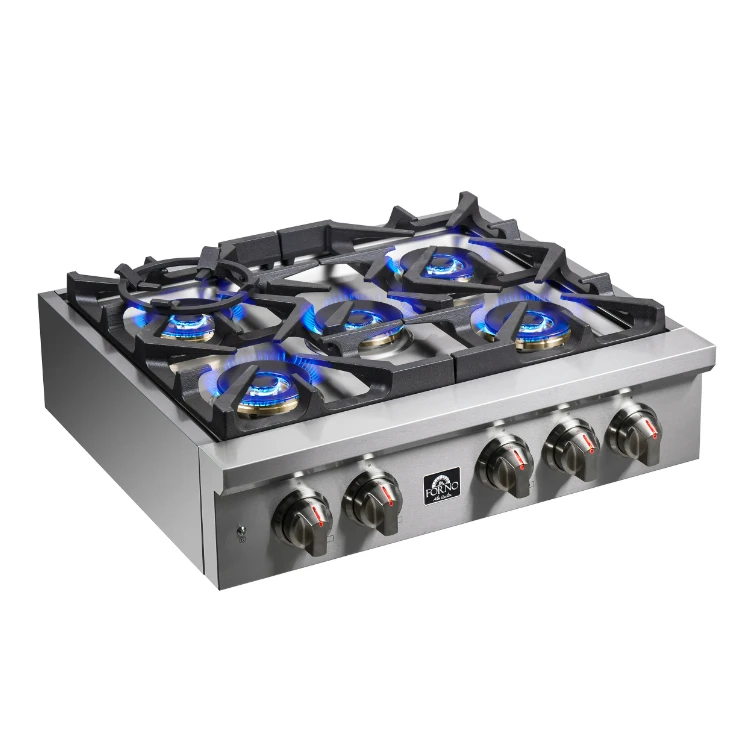

FORNO 30″ Forno Gas Rangetop • FCTGS5751-30

Product Description

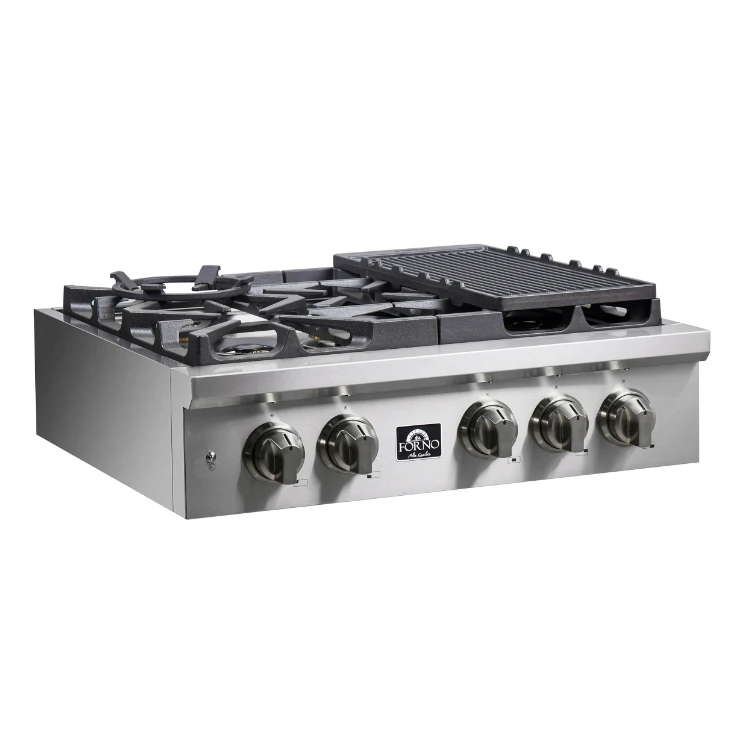

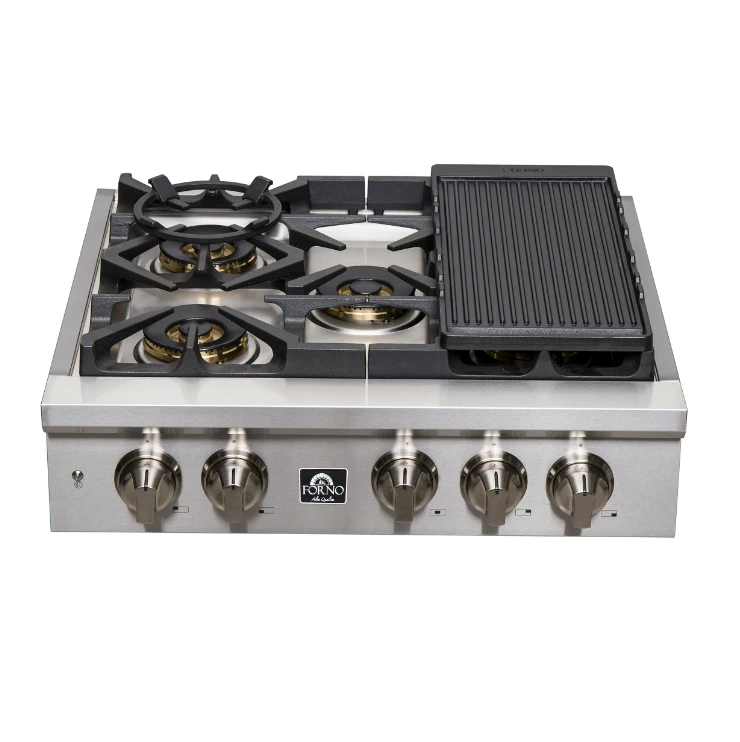

• The FORNO ALTA QUALITA 30” Pro-Style Gas Rangetop has a versatile cooktop configuration with 5 sealed dual brass burners totalling 100,000 BTUs to handle any culinary challenge.
• Heavy duty continuous cast iron grates simplify moving pans around without lifting them off the surface and contoured Zinc Control Knobs allow easy control of the burners for precision gas cooking.
• Includes Auto-ignition, Griddle, Wok-Ring and LP conversion Kit. Heavy-duty 304 stainless steel cleans easily and beautifully complements other Forno appliances to fit any kitchen design.



Features

COOKTOP:

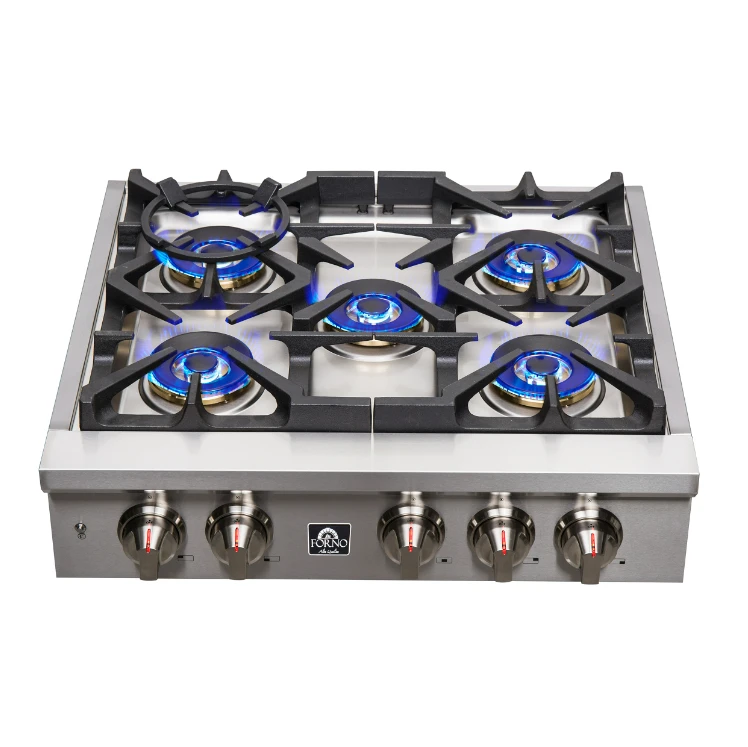

5 Sealed Brass Burners • 100,000 BTU Total Stove-Top Output • Deep Recessed Enamel • Continuous Cast Iron Grates

FEATURES:

Heavy-Duty Food Grade 304 Stainless-Steel • Illuminated Zinc Control Knobs • Auto-ignition

INCLUDES:

Concave Wok Ring • Griddle • LP Conversion Kit • Power Cord

Specification

Description

Product Description: Gas Range Top

Product Type: Drop-in Rangetop

Color/Finish: Stainless Steel

Fuel Type: Gas

Gas Type: Natural Gas

Gas Heat Configuration: Sealed Brass Burners

Number of Burners: 5

Cooktop Surface: Deep Recessed Enamel

Continuous Cast Iron Grate: Yes

Cleaning Type: Manual

Control Type: Knob

Control Location: Front

Sealed Burners: Yes

LP Gas Convertible: Yes

Fingerprint Resistant: Yes

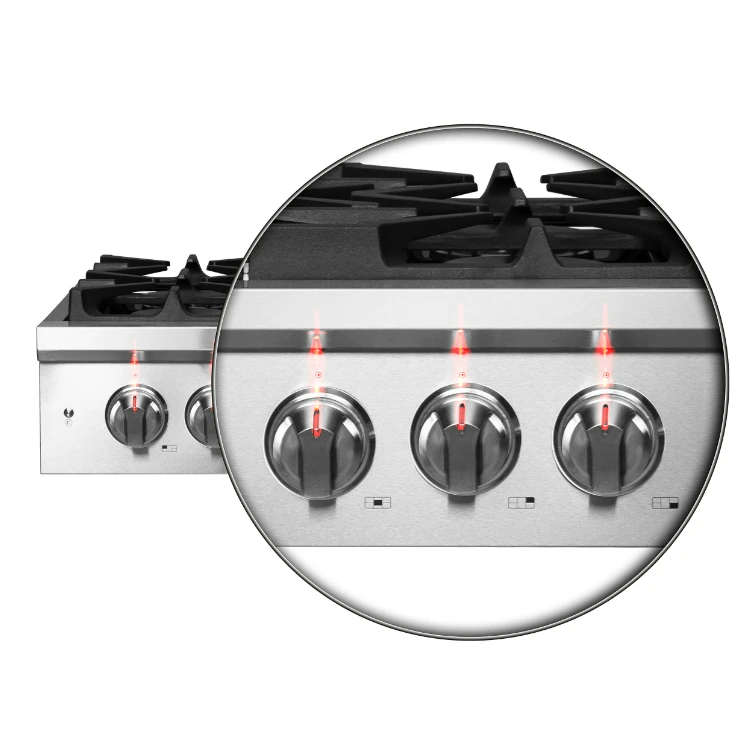

Illuminated Zinc Knobs: Yes

Food Grade 304 Stainless Steel: Yes

Back Splash Guard Included: No

Griddle Include: Yes

LP Conversion Kit Included: Yes

Thermostat: No

Regulator: No

Safety Valves: No

Temperature Gauge: No

Timer: No

Clock: No

Primary Material: 304 Stainless Steel

Supplier Intended and Approved Use: Residential Use

Country of Origin: China



Cooktop

• Overall Burners BTU: 100,000
• Middle Burner BTU: Min: 1,416 • Max: 20,000
• Front Right Burner BTU: Min: 1,416 • Max: 20,000
• Front Left Burner BTU: Min: 1,416 • Max: 20,000
• Rear Right Burner BTU: Min: 1,416 • Max: 20,000
• Rear Left Burner BTU: Min: 1,416 • Max: 20,000

Electrical

• Amperage: 15A
• Volts: 120V
• Power Cord Length: 3.9′
• Receptacle Type: 3-prong grounding-type

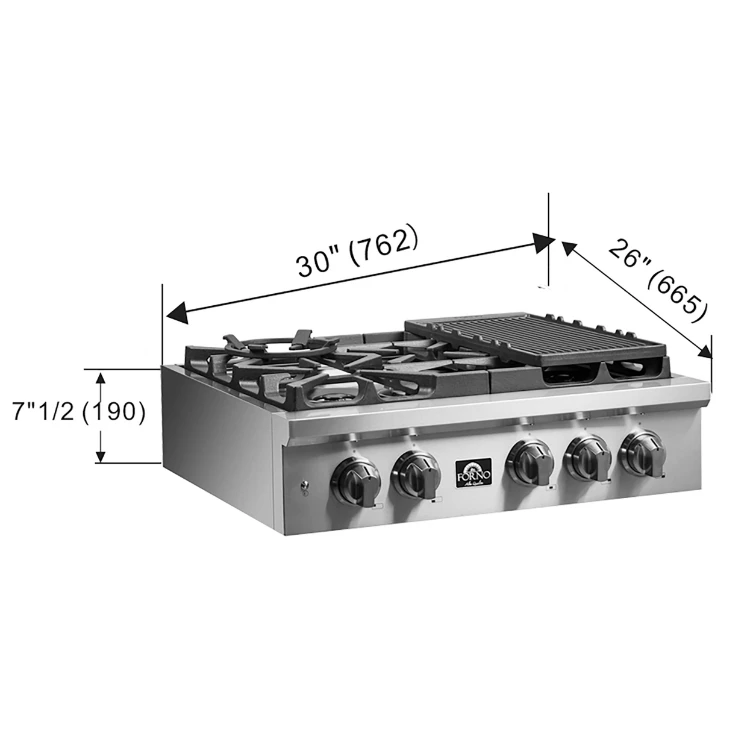

• Weight & Dimensions
• Overall Weight: 130 lbs
• Overall Dimensions: 29.92”W x 8.27”H x 27.56”D
• Cutout Dimensions: 30”W x 9”H x 28”D

Certifications

• ETL Listed: yes
• Title 20 – California Regulation: yes
