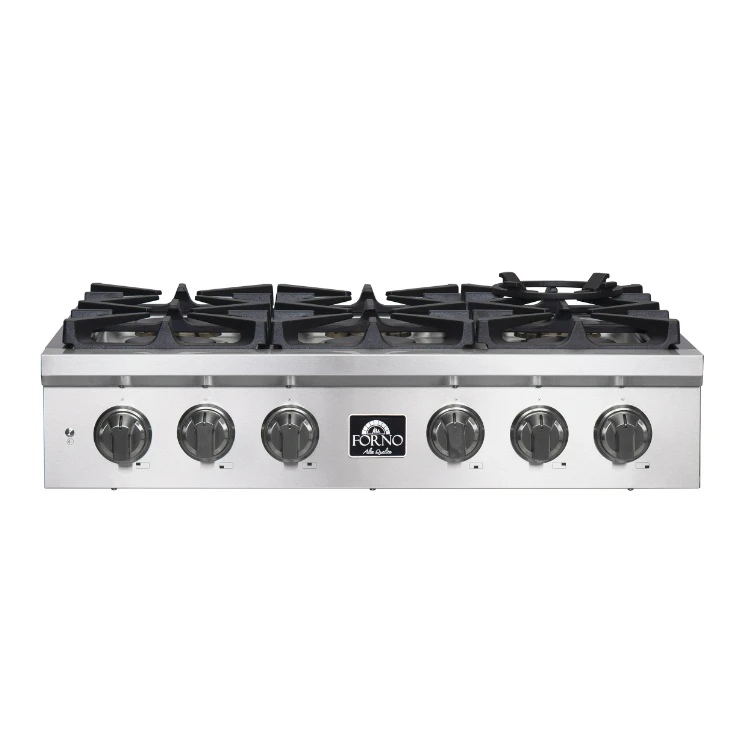

FORNO 36″ Gas Rangetop • FCTGS5751-36

Product Description



• The FORNO ALTA QUALITA 36” Pro-Style Gas Rangetop has a versatile cooktop configuration with 6 sealed dual brass burners totalling 120,000 BTUs to handle any culinary challenge.
• Heavy duty continuous cast iron grates simplify moving pans around without lifting them off the surface and contoured Zinc Control Knobs allow easy control of the burners for precision gas cooking.
• Includes Auto-ignition, Griddle, Wok-Ring and LP conversion Kit. Heavy-duty 304 stainless steel cleans easily and beautifully complements other Forno appliances to fit any kitchen design.

Features

COOKTOP:

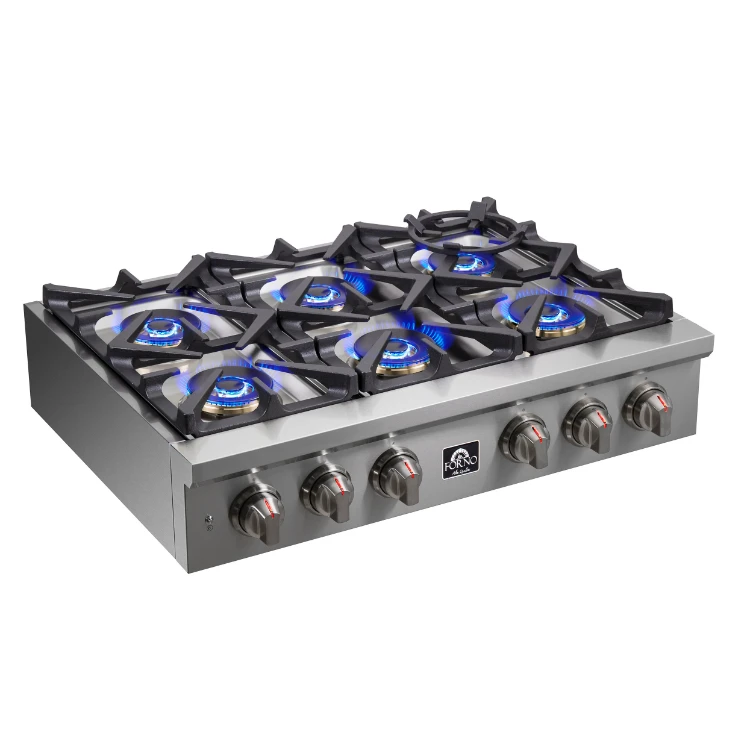

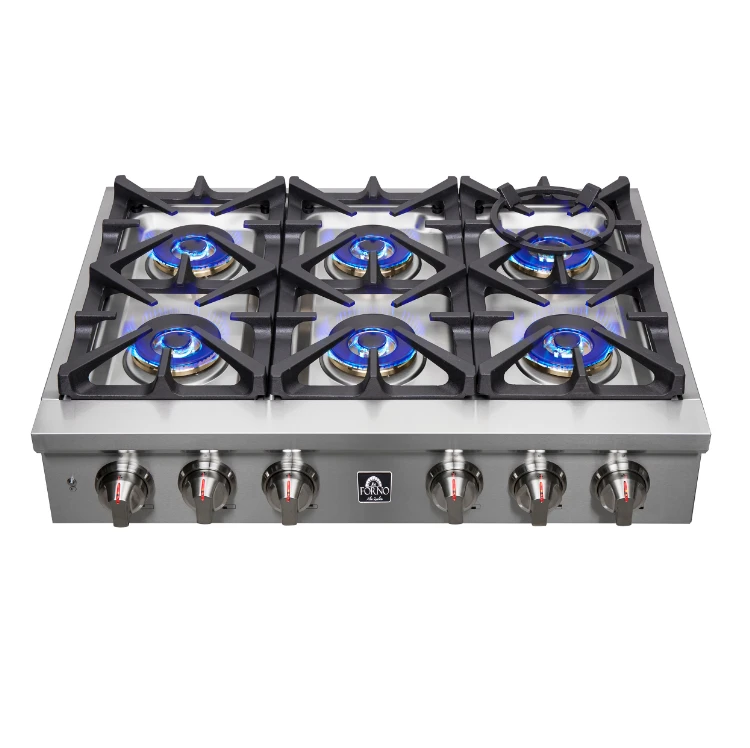

6 Sealed Brass Burners • 120,000 BTU Total Stove-Top Output • Deep Recessed Enamel • Continuous Cast Iron Grates

FEATURES:

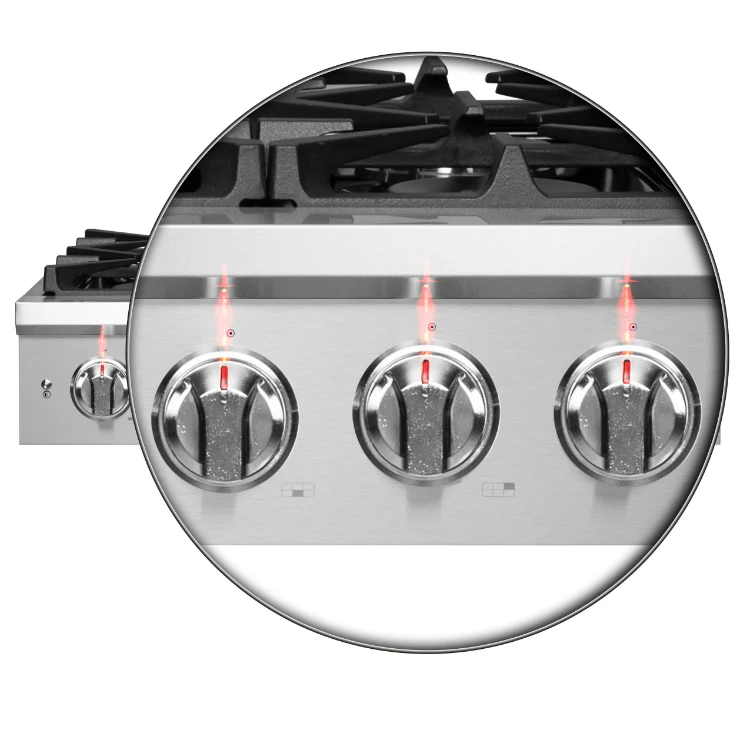

Heavy-Duty Food Grade 304 Stainless-Steel • Illuminated Zinc Control Knobs • Auto-ignition

INCLUDES

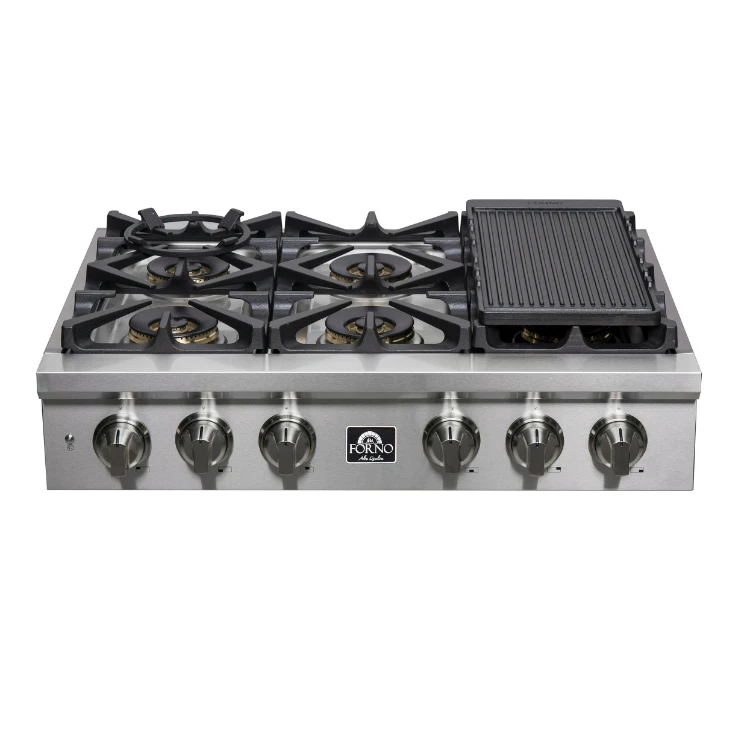

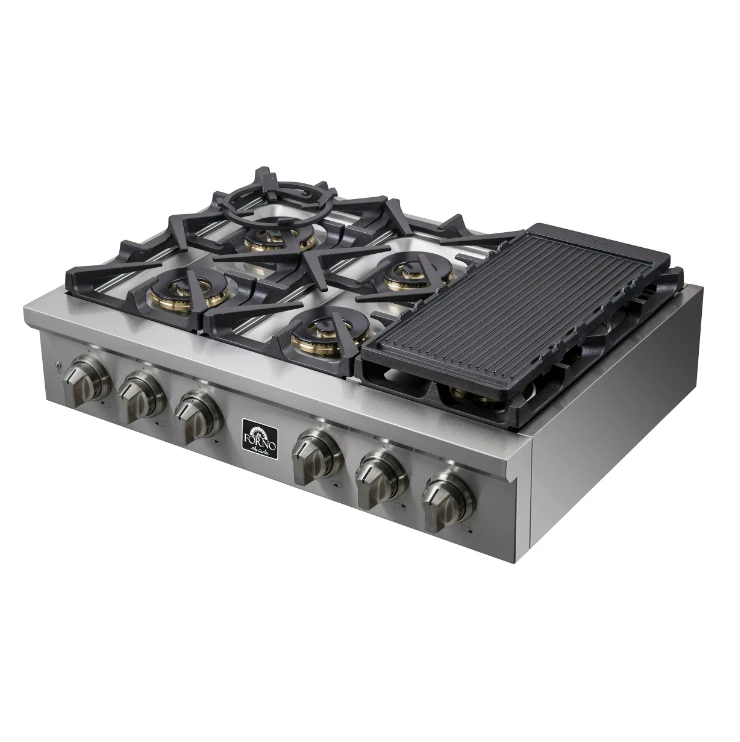

Concave Wok Ring • Griddle • LP Conversion Kit • Power Cord

Specification

Description:

• Product Description: Gas Range Top
• Product Type: Drop-in Rangetop
• Color/Finish: Stainless Steel
• Fuel Type: Gas
• Gas Type: Natural Gas
• Gas Heat Configuration: Sealed Brass Burners
• Number of Burners: 6
• Cooktop Surface: Deep Recessed Enamel
• Continuous Cast Iron Grate: Yes
• Cleaning Type: Manual
• Control Type: Knob
• Control Location: Front
• Sealed Burners: Yes
• LP Gas Convertible: Yes
• Fingerprint Resistant: Yes
• Illuminated Zinc Knobs: Yes
• Food Grade 304 Stainless Steel: Yes
• Back Splash Guard Included: No
• Griddle Include: Yes
• LP Conversion Kit Included: Yes
• Thermostat: No
• Regulator: No
• Safety Valves: No
• Temperature Gauge: No
• Timer: No
• Clock: No
• Primary Material: 304 Stainless Steel
• Supplier Intended and Approved Use: Residential Use
• Country of Origin: China

Cooktop

• Overall Burners BTU: 120,000
• Front Right Burner BTU: Min: 1,416 • Max: 20,000
• Front Middle Burner BTU: Min: 1,416 • Max: 20,000
• Front Left Burner BTU: Min: 1,416 • Max: 20,000
• Rear Right Burner BTU: Min: 1,416 • Max: 20,000
• Rear Middle Burner BTU: Min: 1,416 • Max: 20,000
• Rear Left Burner BTU: MMin: 1,416 • Max: 20,000

Electrical

• Amperage: 15A
• Volts: 120V
• Power Cord Length: 3.9′
• Receptacle Type: 3-prong grounding-type

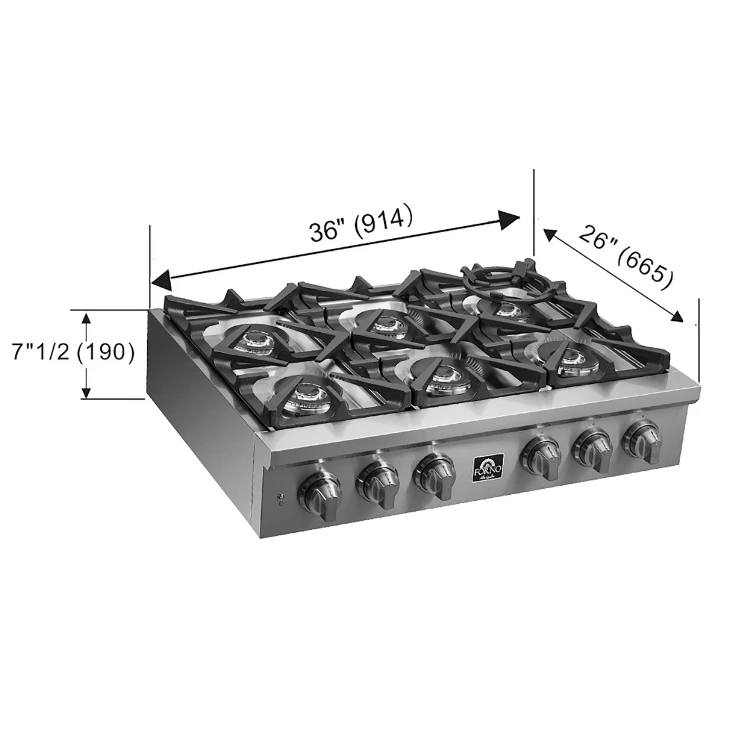

• Weight & Dimensions
• Overall Weight: 166 lbs
• Overall Dimensions: 35.83”W x8.27”H x27.56”D
• Cutout Dimensions: 36”W x 9”H x 28”D

Certifications

• ETL Listed: yes
• Title 20 – California Regulation: yes
