The 46 In. Sunstone Gas Hybrid Charcoal Grill Base Cabinet is uniquely designed to receive multiple Types of either Gas Grill or Charcoal Grill Brand Models right out of the box easy installation.

The cabinet comes standard with a Right & Left Side Door Enclosure for a Trash Bin or Storage, is not compatible with Larger Propane Tanks.

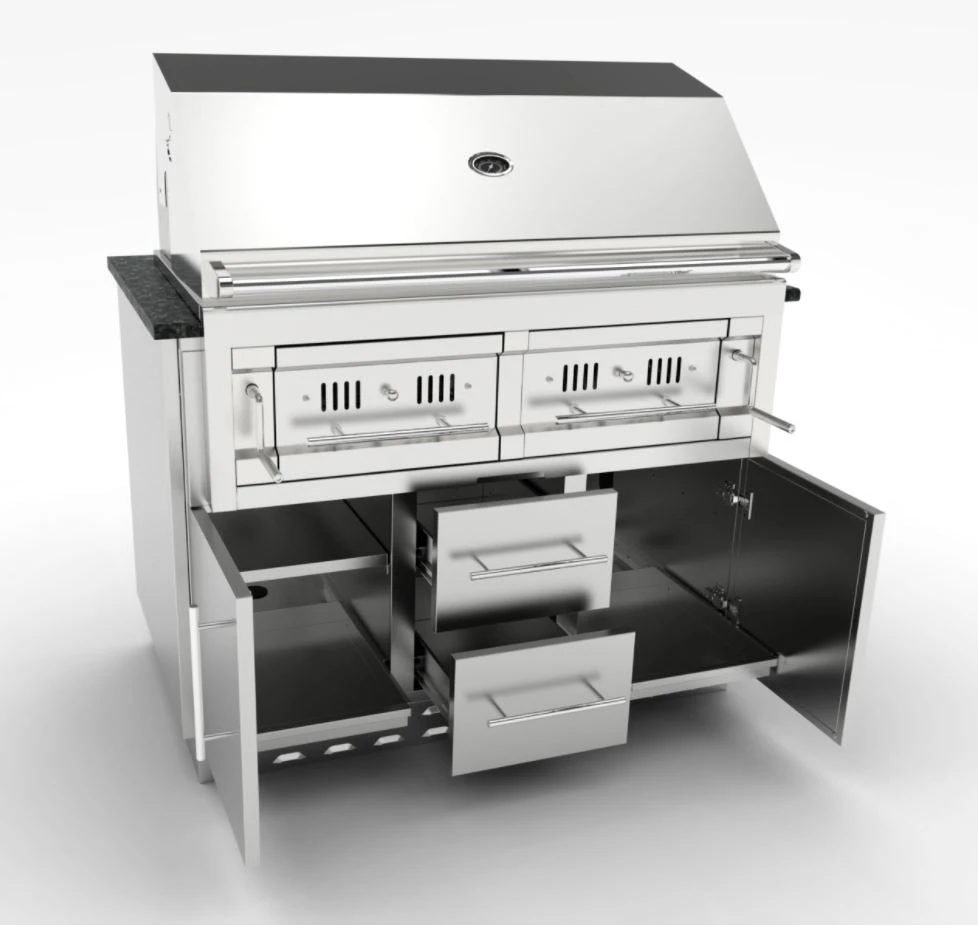

In addition there are Two Center Large Drawers with Ample Storage Space for all your BBQ Utensils, Rubs and Sauces.

The cabinet comes Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates.

This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of cabinet, which adapts the cabinet to fit your preferred grill

Compatible with Grills “CUT-OUT” Sizes between 35-3/4 In. to 41 In. Width by 10-3/8 In. to 12-3/4 In. Max Height with counter at 3/4 In. Height with Filler Rail installed or removed.

Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with cabinet to fit your grill, if your grill is any of our Models we will automatically include the correct Trim-Kit.

Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions this refers to your grills “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order

Features

Lifetime Structure Warranty
304 Stainless Steel Structure
304 SS Rod Handles
Front Vented Kick-Plate
Rear Solid Kick-Plate
Soft-Close Drawer Tracks
Easy Pin-Lock Installation
Removable Counter Rail
Covered Sidewall Access Ports
4 Adjustable Peg-Legs
Optional Wheel Casters
Replaceable Face Panel

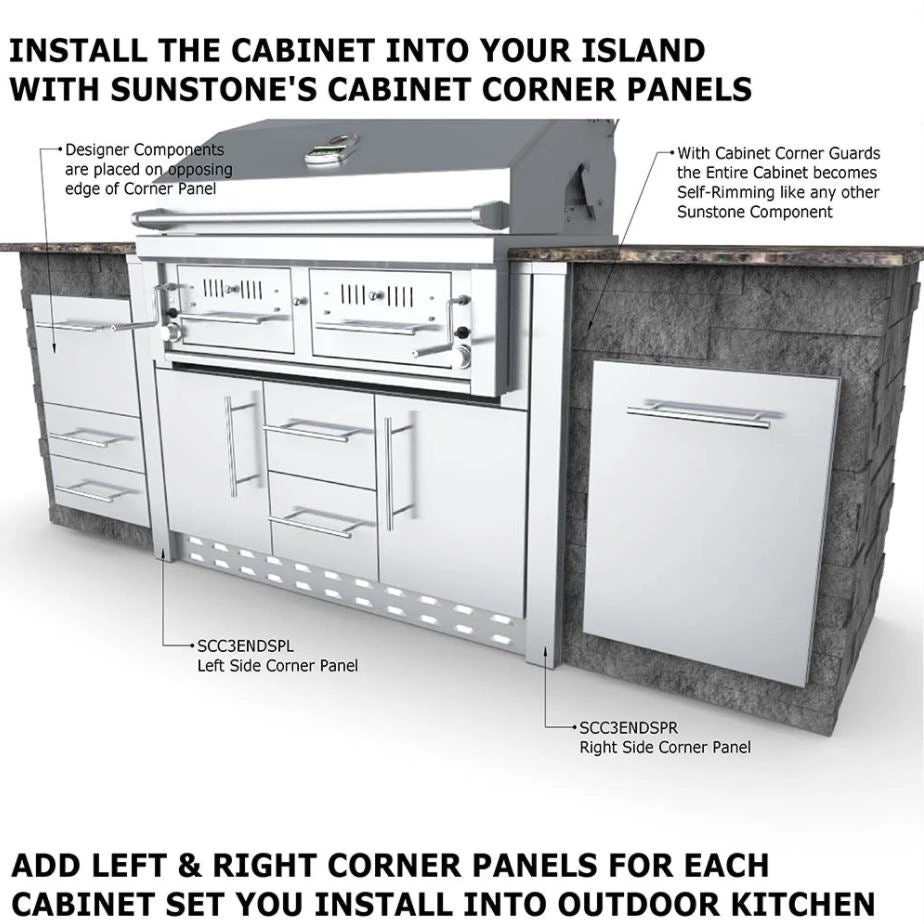

Separately purchase the Side Cabinet End Panel & End Kick

Specifications

46″ Sunstone Charcoal Grill Base Cabinet

46″W x 28-1/4″D x 34-1/2″H (w/Legs)
46-“W x 28-1/4″D x 30-1/2″H (without Legs)
Up to 36″ Max Adjustable Height
Net Weight 198 LBS
49″W x 31″ L x 33″ H(Package Size)/215LBS

Insertable Products

Sunstone Metal Products – 42″ Drop in Charcoal Grills EMCHDZ42-LP

Material Specifications
304 Stainless Steel entire structure 18 Gauge for Door Panel 18 Gauge for Cabinet Box 18 Gauge for Shelf Handles are made of Solid 304 Stainless Steel Bar
