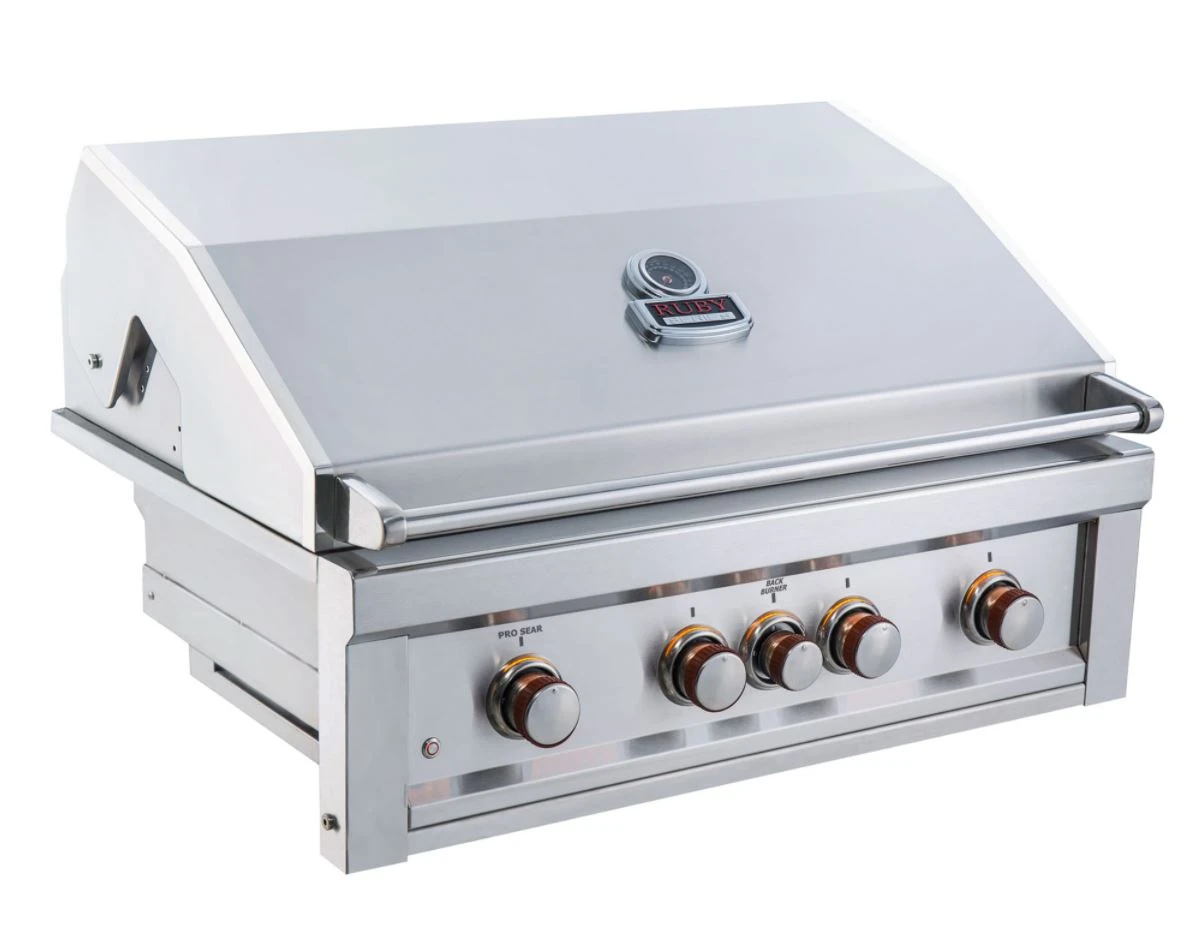

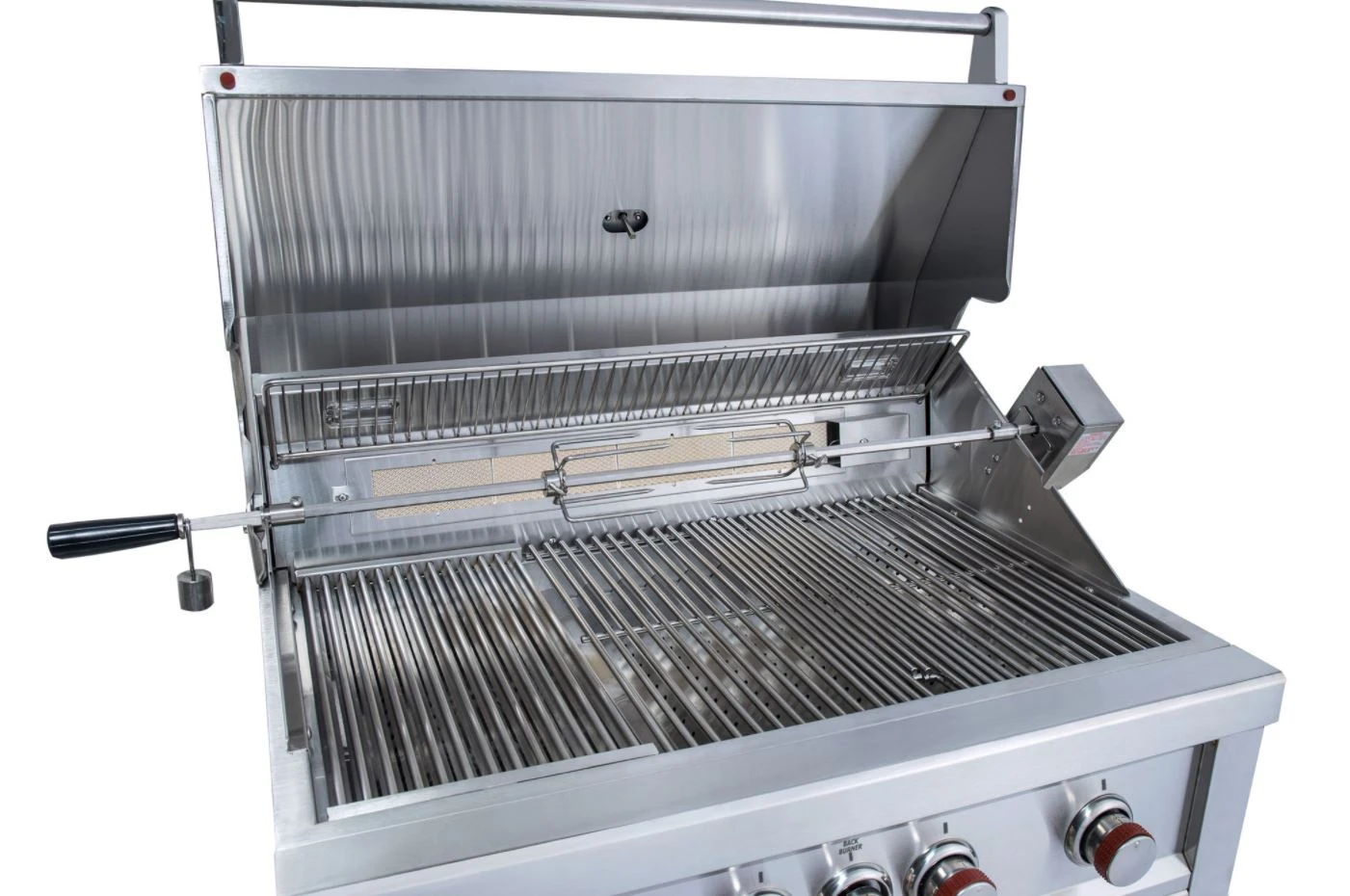

Ruby Series, by Sunstone – Pro Sear 4 Burner grill with Infra-Red Burner & Rotisserie is Superior in its Class, built with ALL 304 grade stainless steel construction, seamless edging, and eye catching features.

Exclusive ALL 304 SS Fabricated I-Burners with a minimal BTU output of 60,000 and an additional 15,000 BTU Extra-Wide Rotisserie Back Burner all with integrated Flame-Thrower Ignition in ALL burner positions.

The cooking grids are Solid 304 Stainless Steel, with Exclusive Variable Rod Spacing, for larger items on the left and right sides and smaller items in the middle.

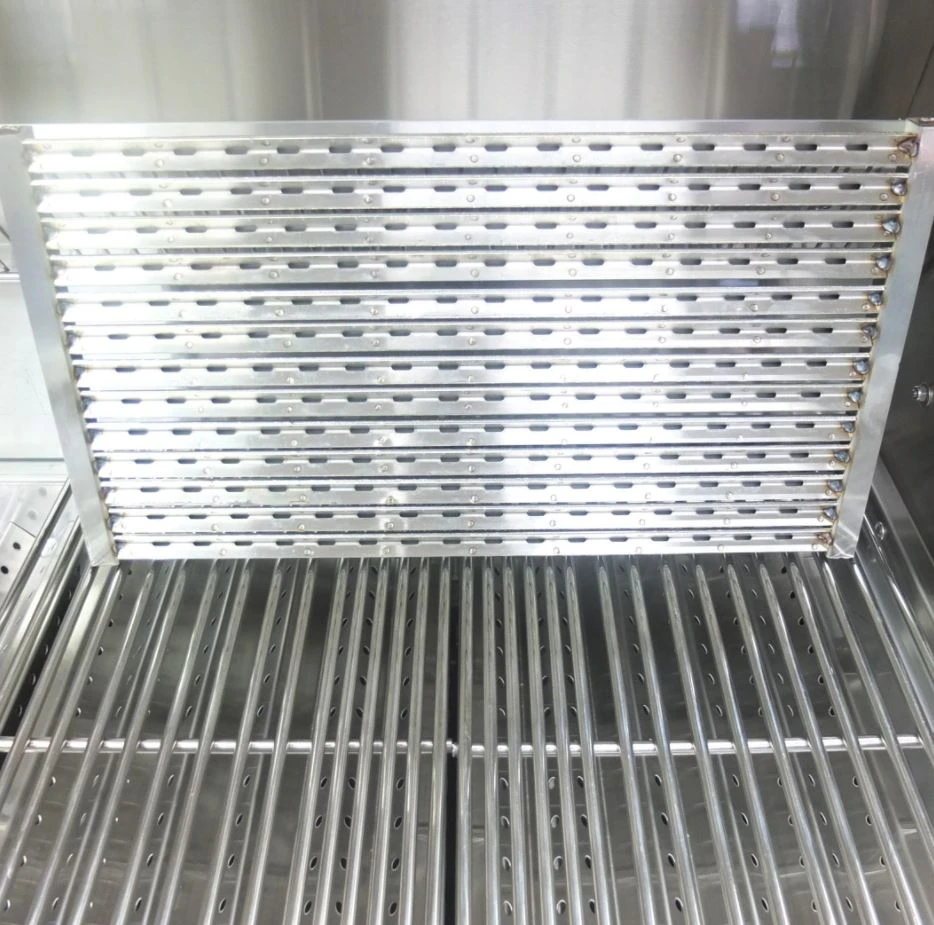

The Warming Grids are designed to work as a Heat-Riser, to push extra heat towards the front, creating an even heat distribution.

At the same time the angled warming grid sheds most Oils & Cooking Grease towards the back Spill-Away so you have less Flare-Ups.

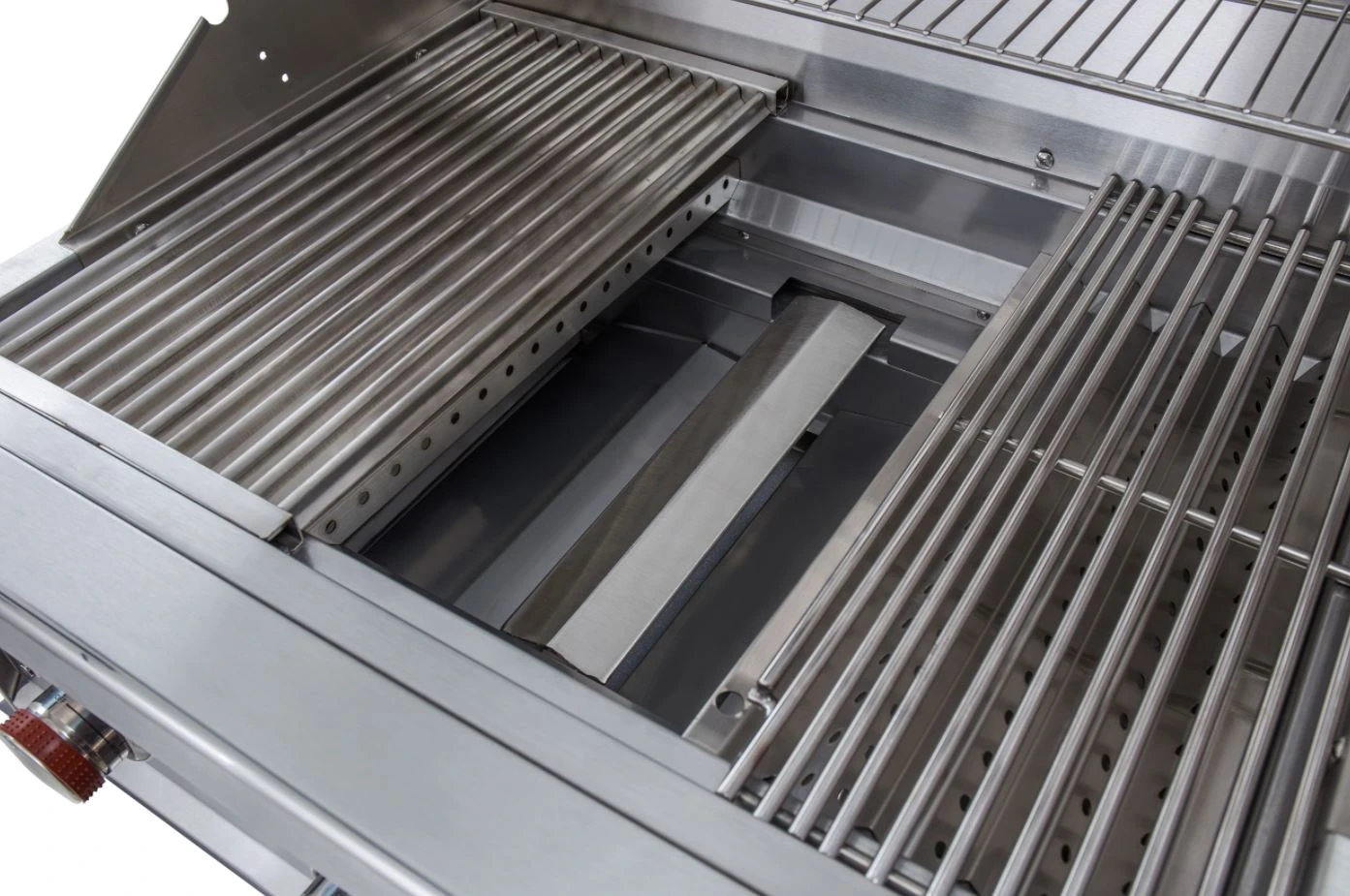

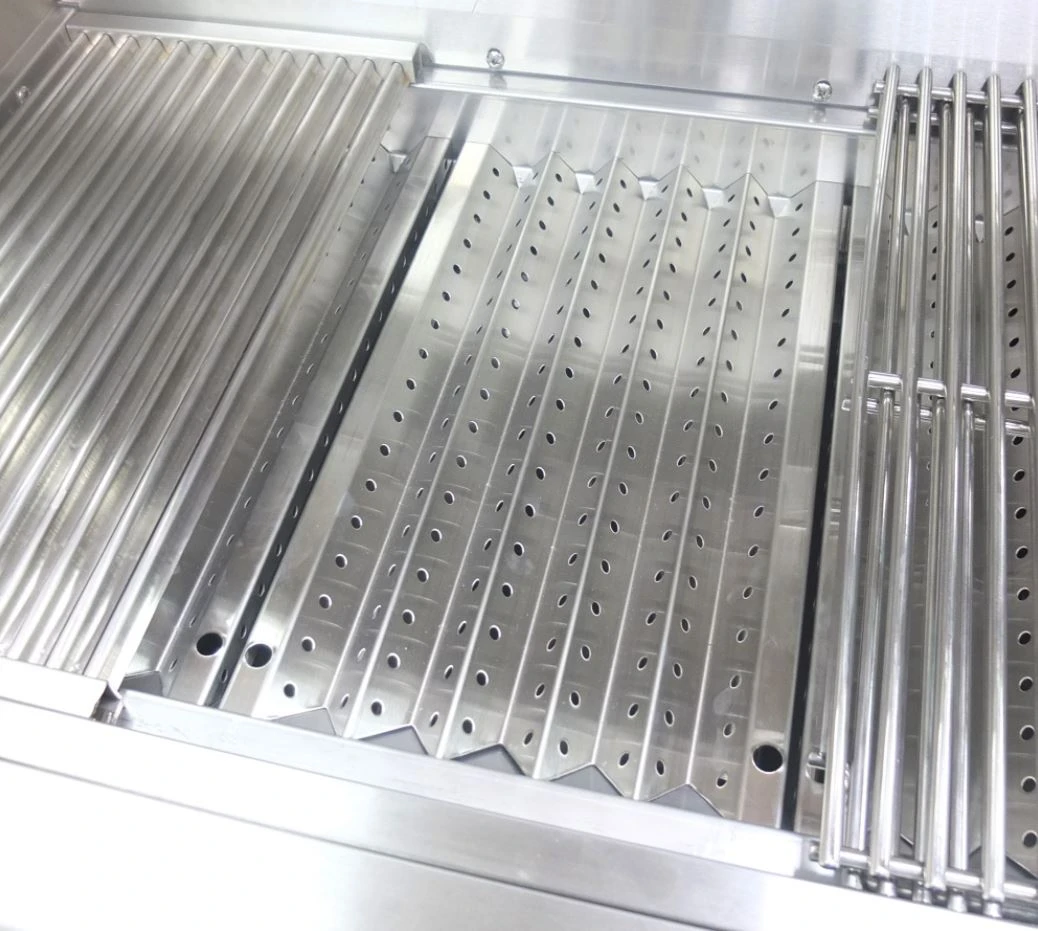

Exclusive Pro Sear Thermal Cooking Grid, transfers heat evenly across the cooking grid at up to 700 degrees with the hood up, and up to 800 degrees with the hood down all in under 3 minutes of heat up time and from a Single Burner.

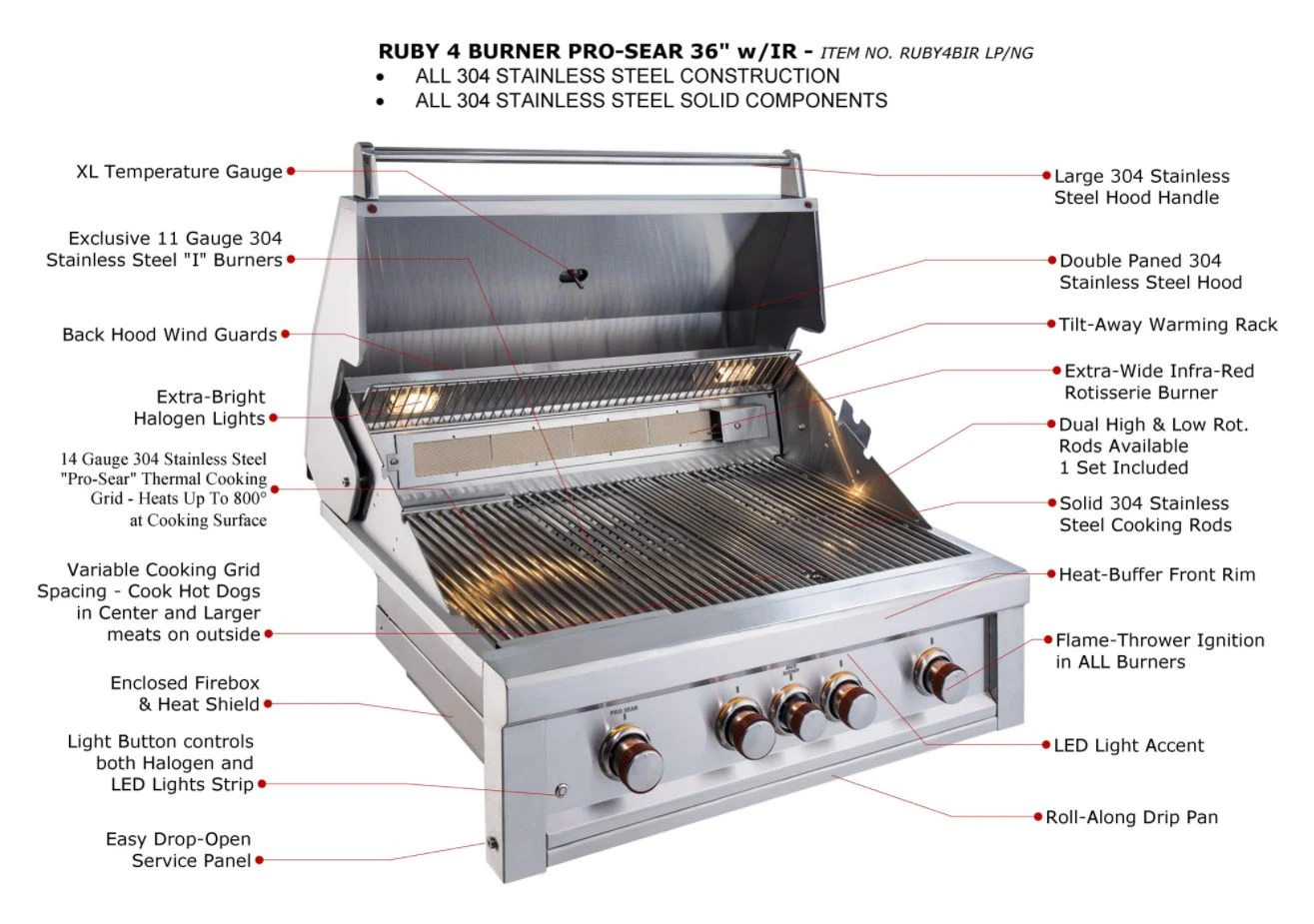

Features

ALL 304 Stainless Steel Construction
ALL 304 Stainless Steel Solid Components
Exclusive – 14 Gauge 304 SS PRO-SEAR Thermal Grid

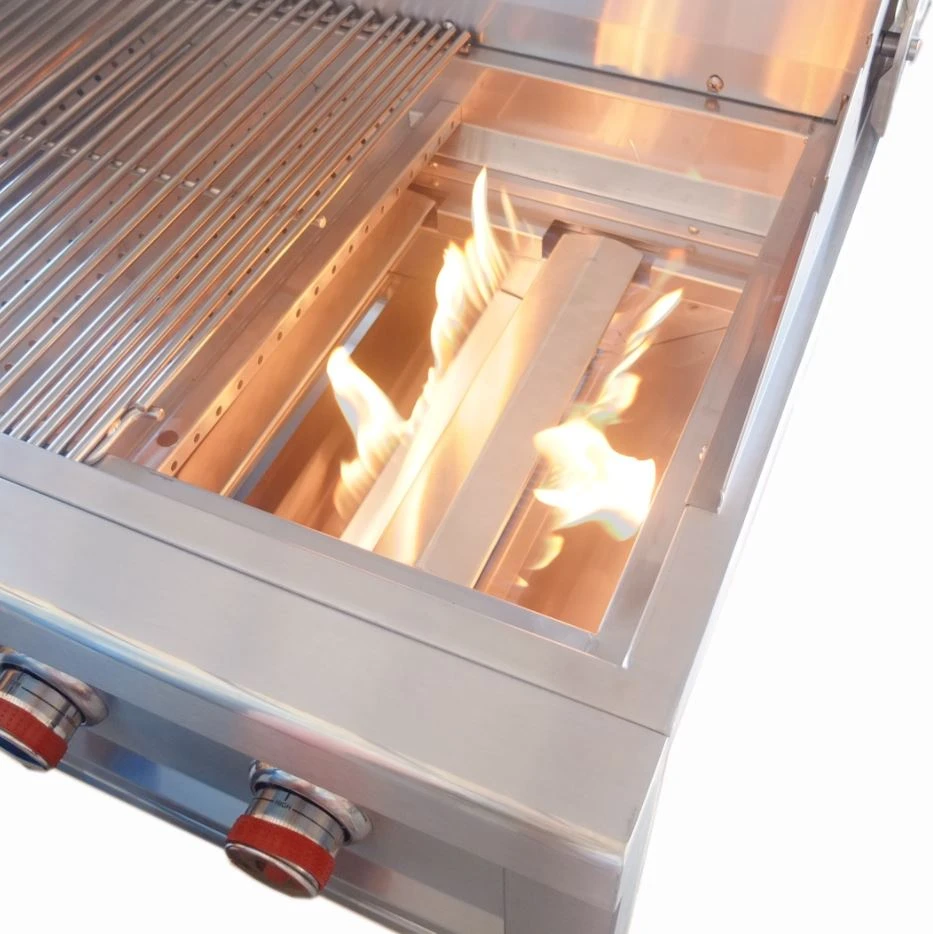

Exclusive – 11 Gauge 304 SS Fabricated I-Burners
Exclusive – Spill-Away Oil Warming Grid for less Flare-Ups
Exclusive – Heat-Riser Warming Grid for more Even Heat

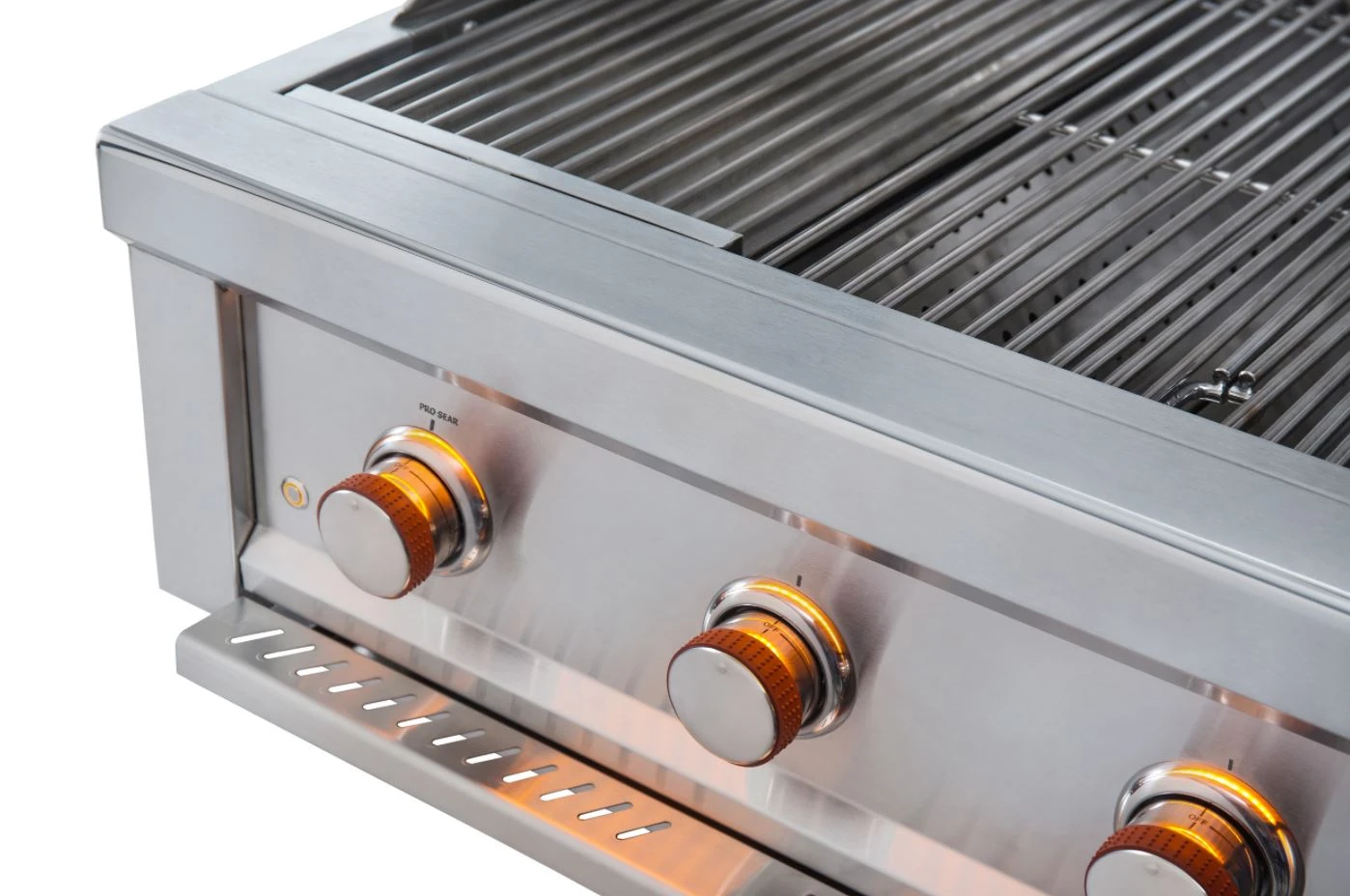

Exclusive – Control Panel LED Lighting Effects

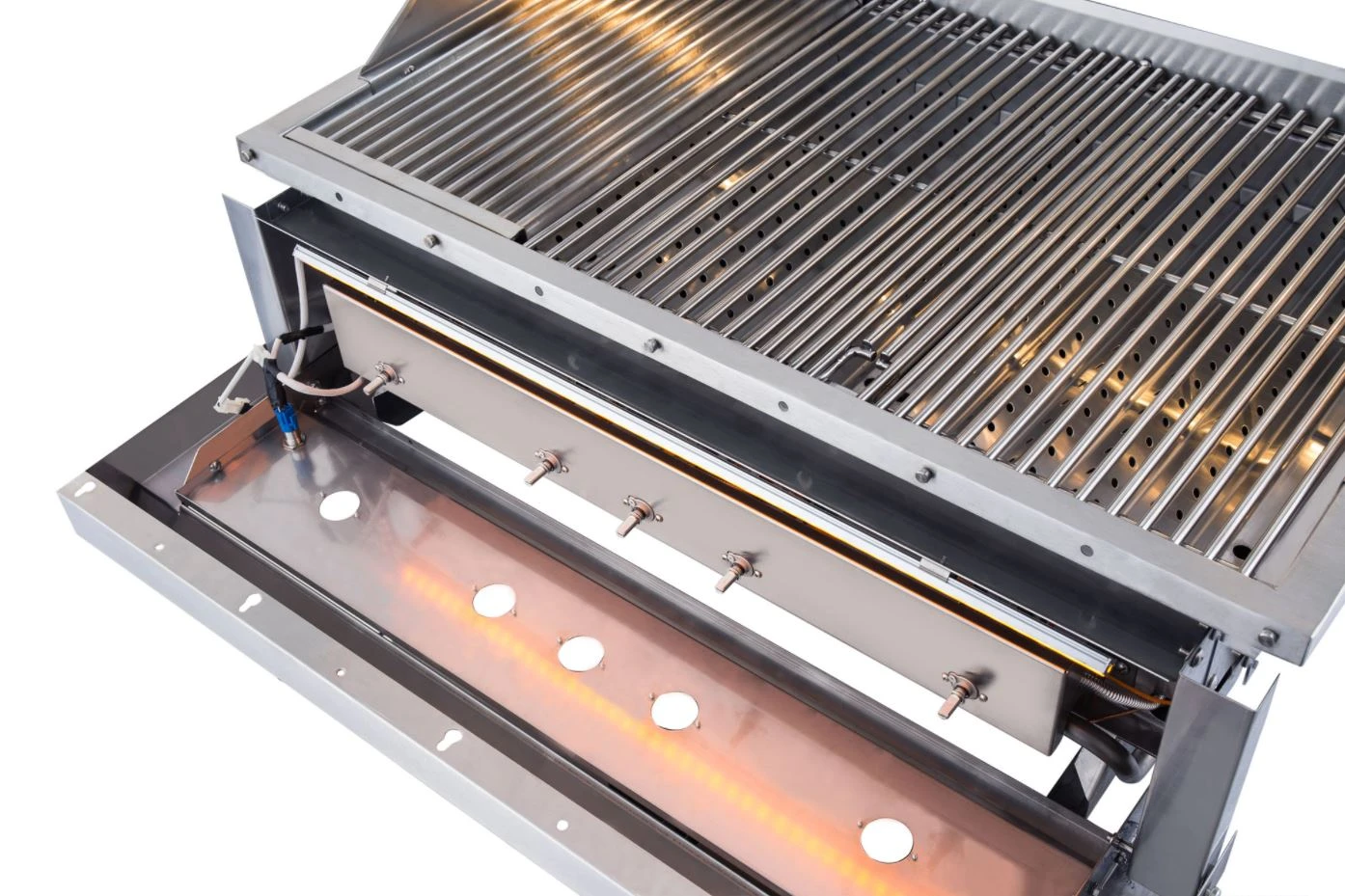

Exclusive – Easy Drop Open Service Panel
Exclusive – Variable Cooking Grid Spacing

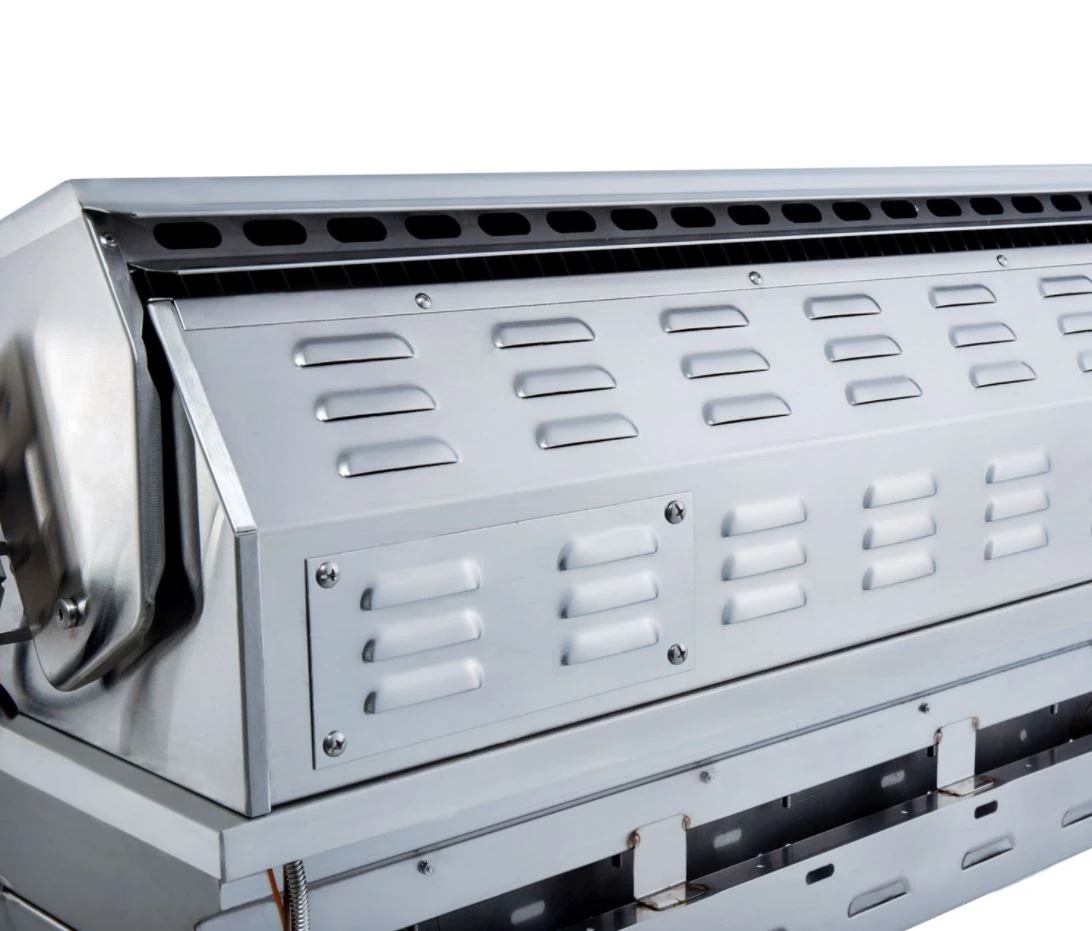

Exclusive – Back Hood Wind Guards

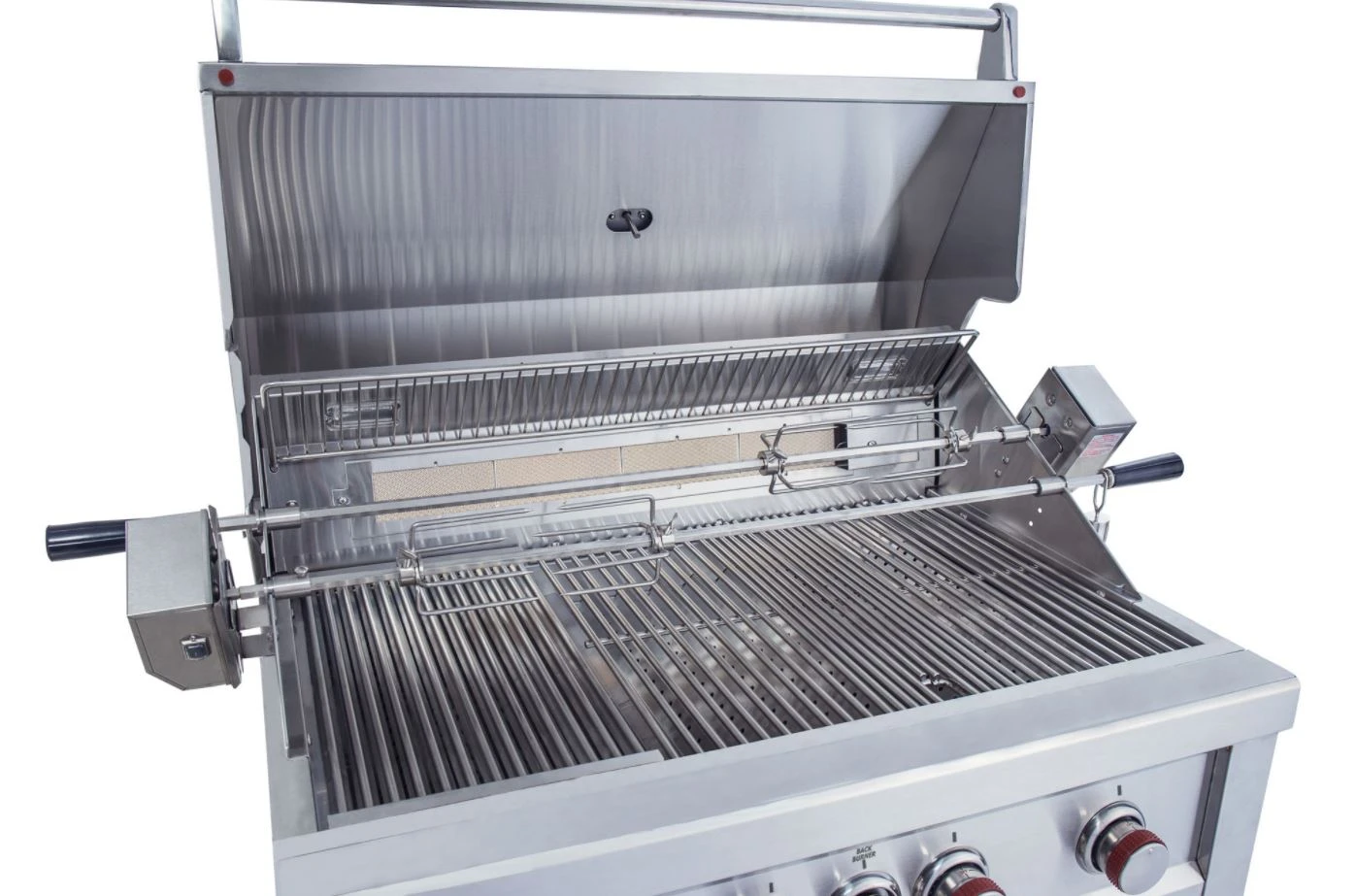

Exclusive – DUAL High & Low Rotisserie Rods – Upgrade
Extra-Wide 15,000 BTU Infra-Red Burner
Included Rotisserie Rod & Heavy-Duty Motor
Flame Thrower Ignition for ALL Burners
Convenient Stow-Away Warming Rack
Extra-Bright Halogen Interior Grill Lights

Specifications

36″W x 27″ D x 22″ H ( Product Size)

33-1/2″ W x 22″ D x 10″ ( Cut out )

150 LBS ( Product Weight)

33″W x 29″ D x 23″ H ( Package Size)

165 LBS ( Total Weight)

Material Specifications
304 Stainless Steel for Entire Structure 18 Gauge Exterior Hood 16 Gauge Side Hood, 18 Gauge on firebox and control panel 20 Gauge Drip trip The grates are made from 18 Gauge solid 304 stainless steel bar

Manuals

Download Product Spec.Sheets

Download Product Manual

Download Ruby Grill Installation Guide

Download Ruby warranty

Download Ruby Gas Conversion

Download Ruby Use & Care Guide

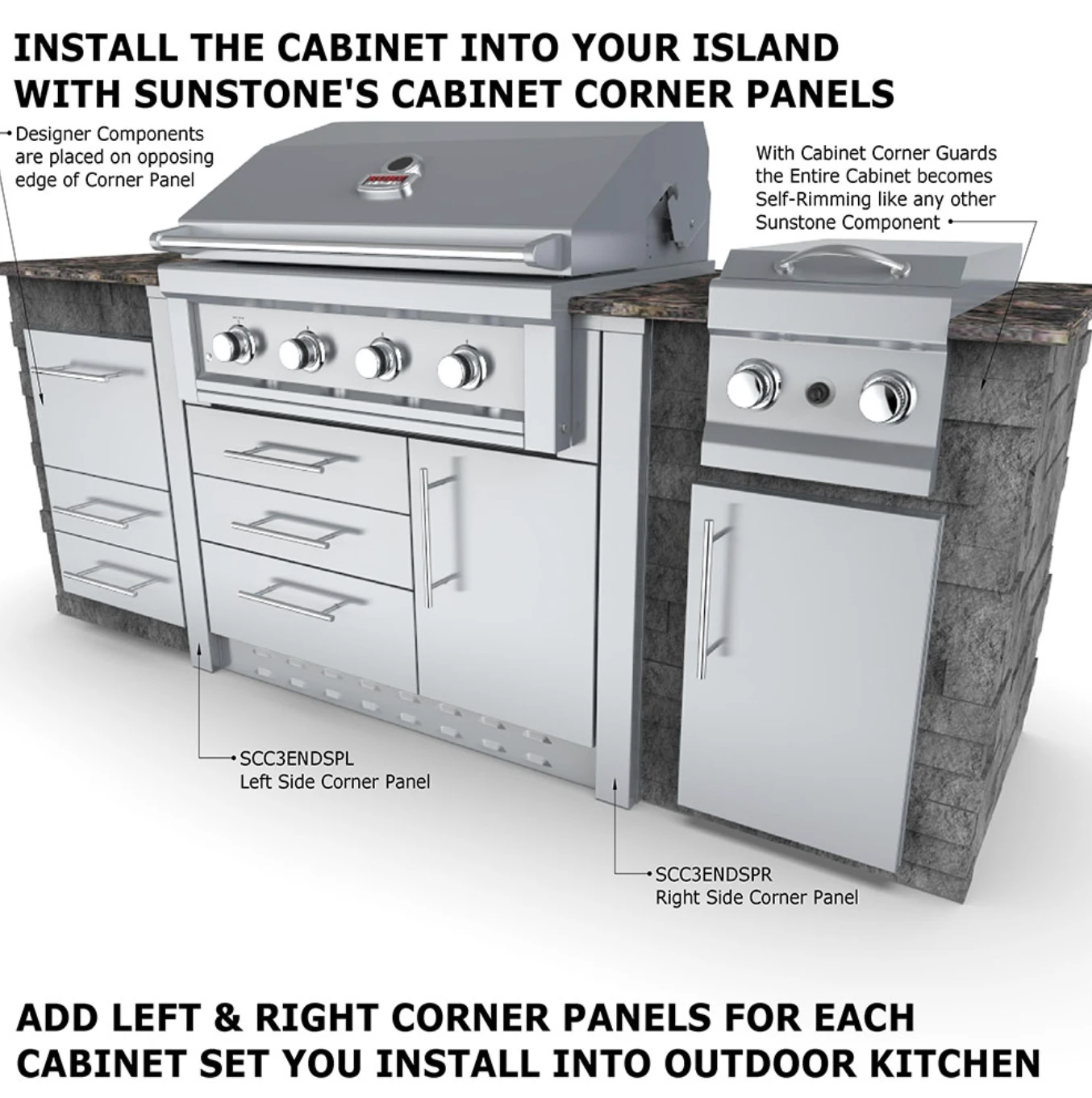

Cabinet Recommendation

40″ Gas Grill Base Cabinet SAC40GLPCD

Shipping

Free Shipping

We are proud to provide Free Shipping & Curbside Delivery

Delivery

In-stock items will be processed within 24 hours
Tracking information is provided upon shipment.
Free Standard Shipping: 7-11 Days

Please view our full shipping policy and FAQs

Installation and White Glove Services are NOT offered for Sunstone Metal Products

Returns & Warranty

Warranty information is located in the back page of your manual – if you do not have your manual refer to our website product pages and locate the manual on the product page.

RUBY GRILLS – We offer a 3 Year Guarantee on the Burner, with 1-Time Replacement ONLY
SUNSTONE GAS GRILLS – We offer a Limited Lifetime Warranty with a 1-Time Replacement ONLY

Return Policy

We accept returns on any item- please see the criteria below:
Return need to be made within 60 days of original purchase, in original packaging and unused for a full refund (Minus Shipping Charges if purchased on our website).

We Highly Recommend you Insure the products when shipping back to us, return will be rejected if product is received damaged and you will need to file your own shipping claim.

If product is returned Undamaged and in Original Packaging, but with some packaging damage, we charge a 15% Repackaging Fee.

When shipping products back to us, Please enclose a printed copy of your Purchase Order with the Company you purchased from inside the box, Do Not make any marks, or writings on the box anywhere or you will be charged 15% repackaging fee.

Please allow 2-4 business days once product is received for us to complete processing, Once credit is issued it can take around 48 hours for you to see the deposit in your bank account.

We do not accept any other product return if they do not meet any of the above requirements.

Shipping Damage
Upon Delivery: Inspect all packages for any sign of damage.

If none: Sign for Delivery and accept.

If damages are evident follow the steps below:

1. Note the damages on Delivery Report before signing and receiving the merchandise. Do not reject the shipment.
2. Call and notify Sunstone Metal Products, or other Company you’ve purchased from of damages or concerns within 48 hours of delivery.
3. Provide photos (damages to product, outer box & packing material),referencing your Invoice, or PO Number and a description of the damages. Save the packing material.
4. For freight shipments it is also wise to write “Not inspected for concealed damage” on the paperwork before accepting the merchandise.

FedEx and UPS claims are usually resolved within 14 business days. All claims that involve Freight Shippers may take up to 120 calendar days to resolve. We will do our best to accommodate all requests for replacement goods prior to the shipper resolving the claim but we do not guarantee this for every shipment.

Please Note: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. By signing the Delivery Report with no notes of damages you are accepting the goods as in good condition. All reports must be made within 48 hours after delivery. We cannot file claims with the shipper after this and you will be responsible for repairs or replacements. If you decide to leave a note and are not present at the time of delivery this is the same as you signing for the delivery without exception.

Warranty Replacement

We offer different types of warranty per each individual product, see the specific product warranty for exact details. For all warranty replacement we ask for a copy of the Purchase Receipt you have with the Company you purchased from.

This is required to show date of purchase and to confirm you are the original purchaser. Our product warranties Do Not extend to second owners of product, only original purchaser.

Product warranties are not renewed each time you replace any specific part of your product under warranty. Our product warranties cover parts only, they do not include the cost of shipping or installation of any specific part.
