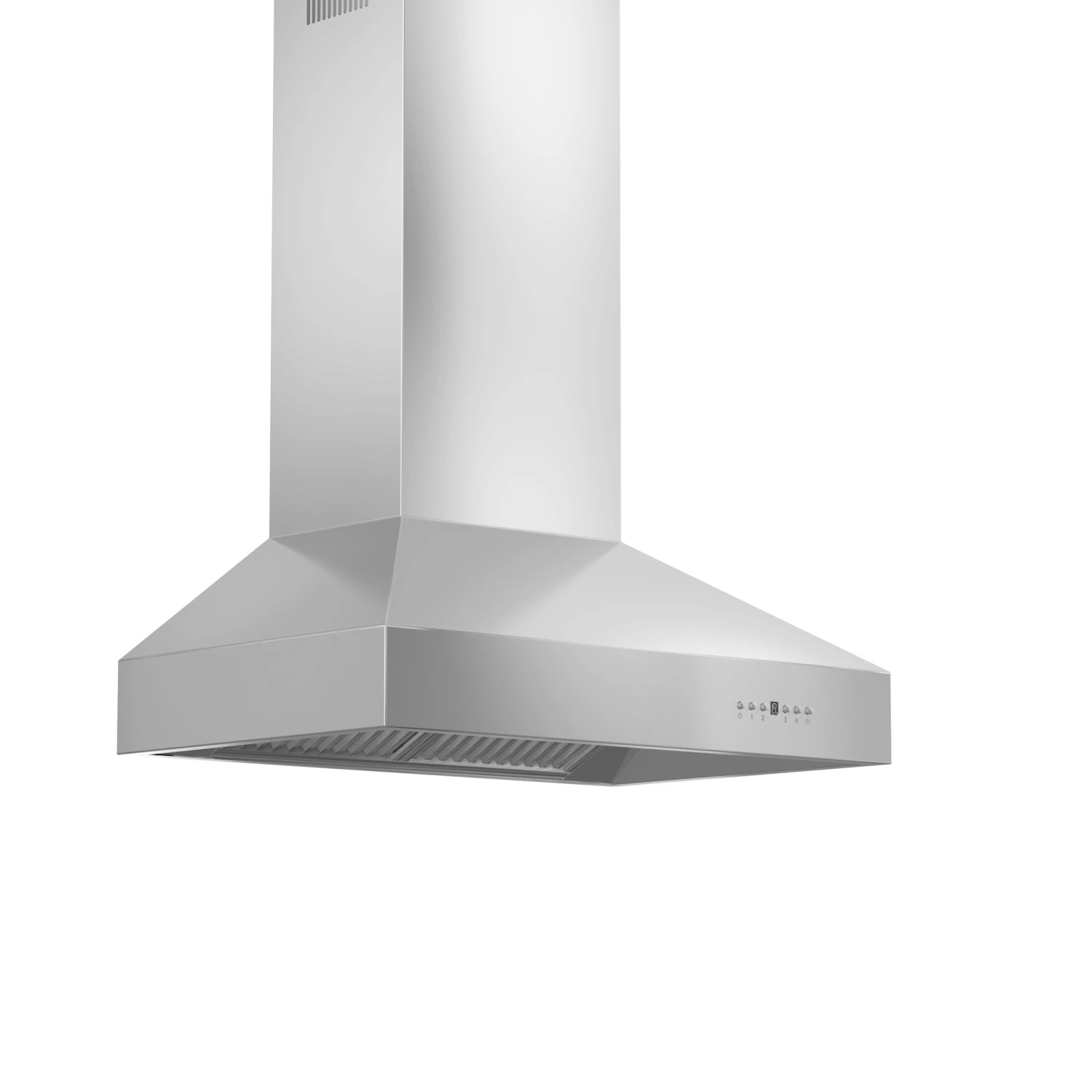

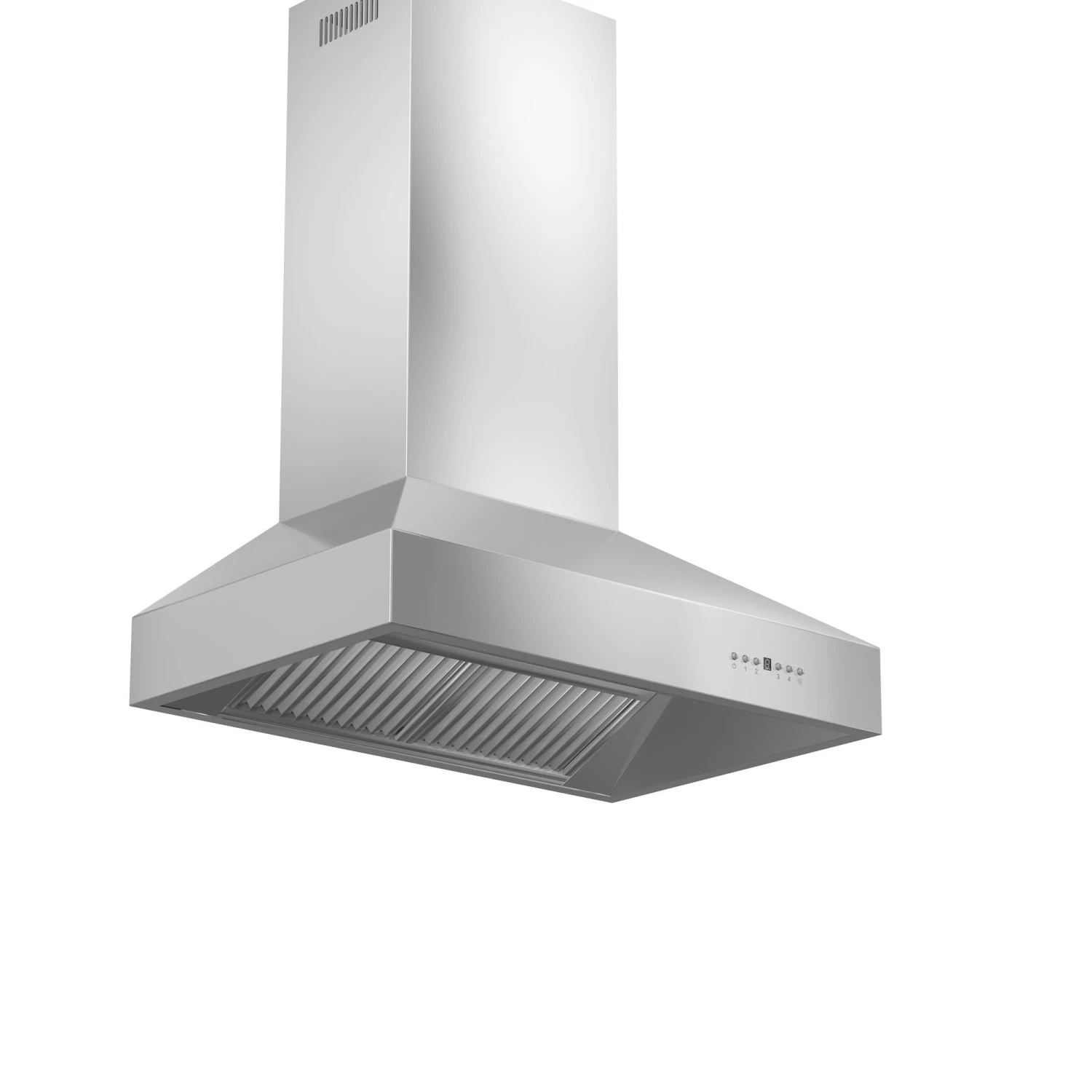

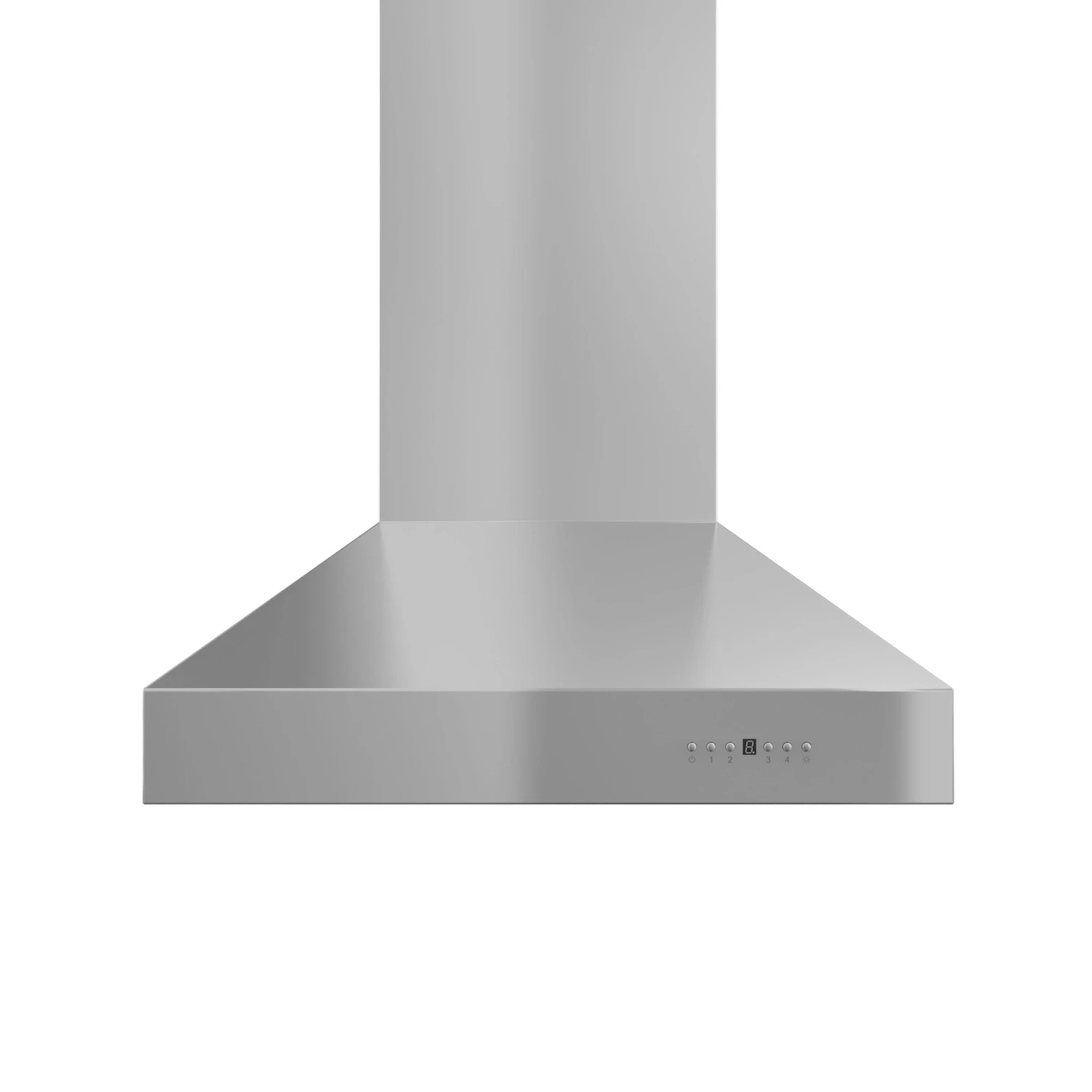

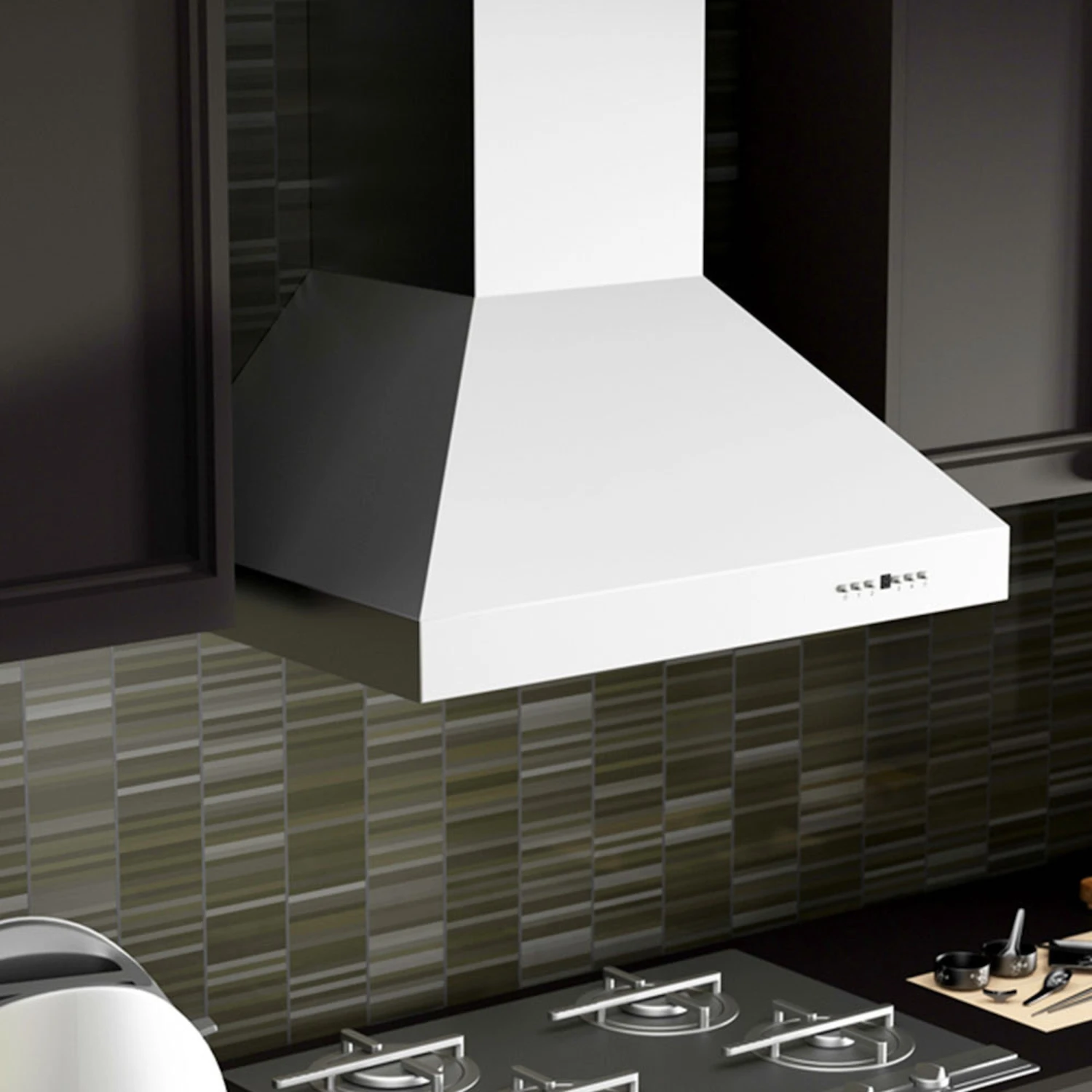

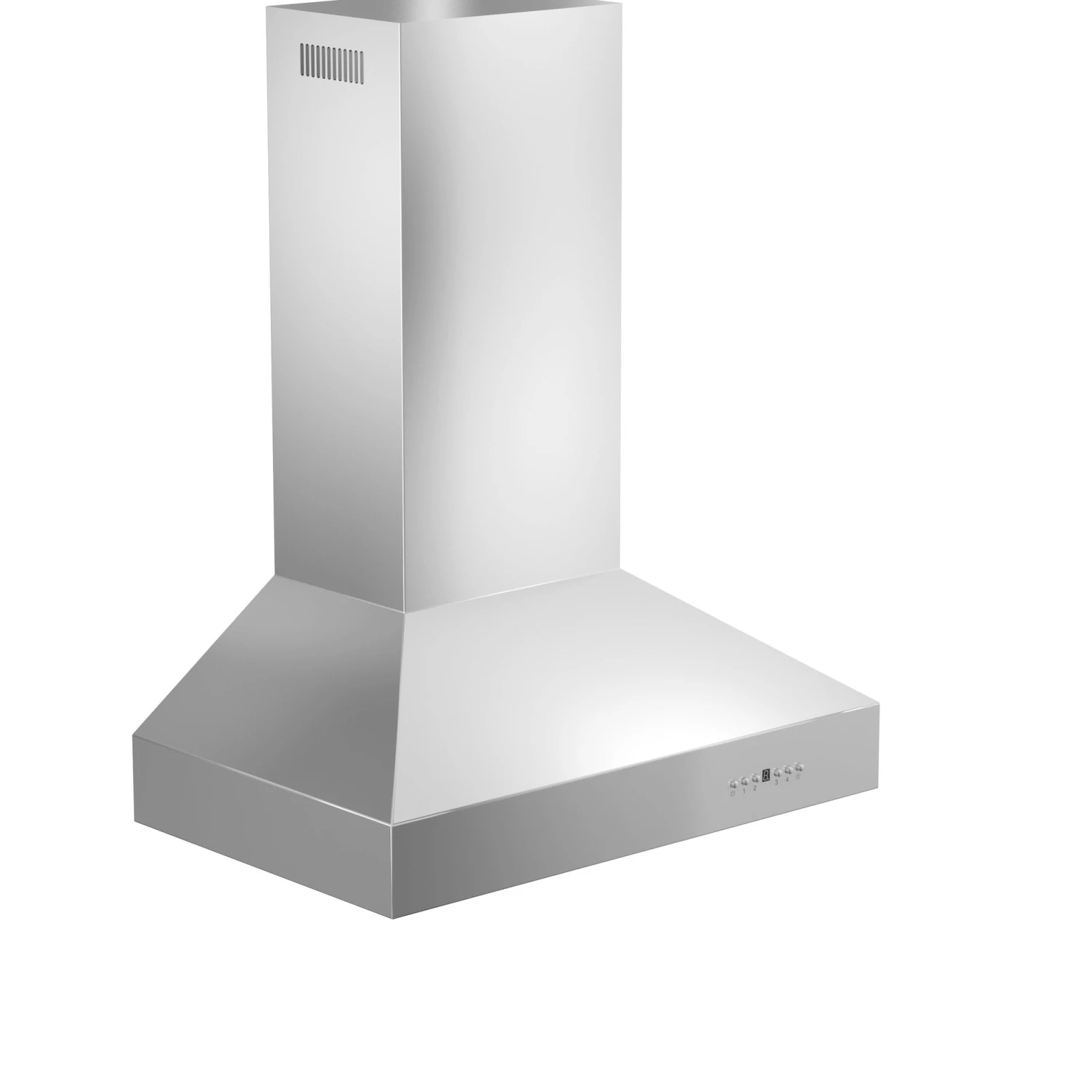

ZLINE Ducted Wall Mount Range Hood In Outdoor Approved Stainless Steel (697-304)

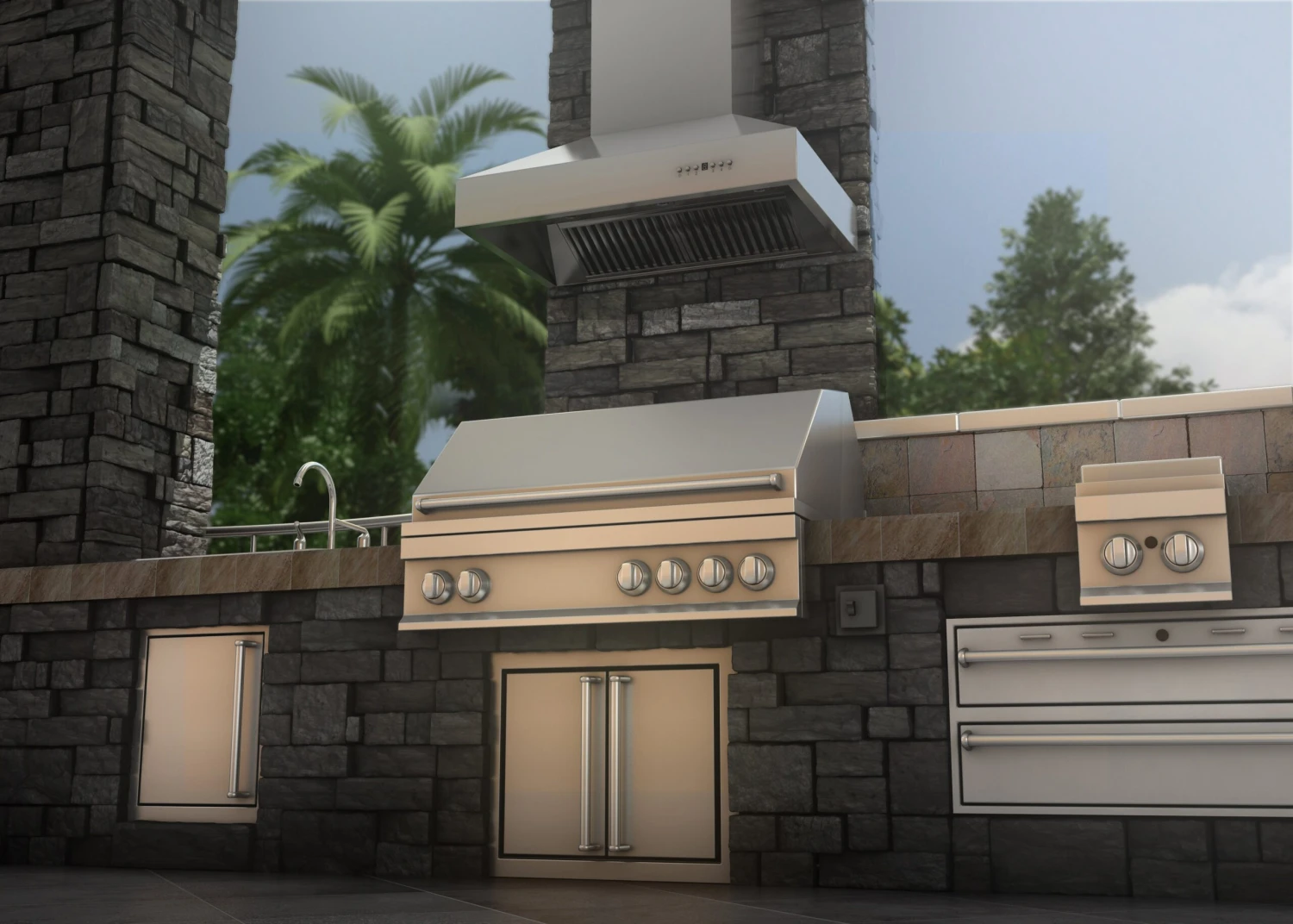

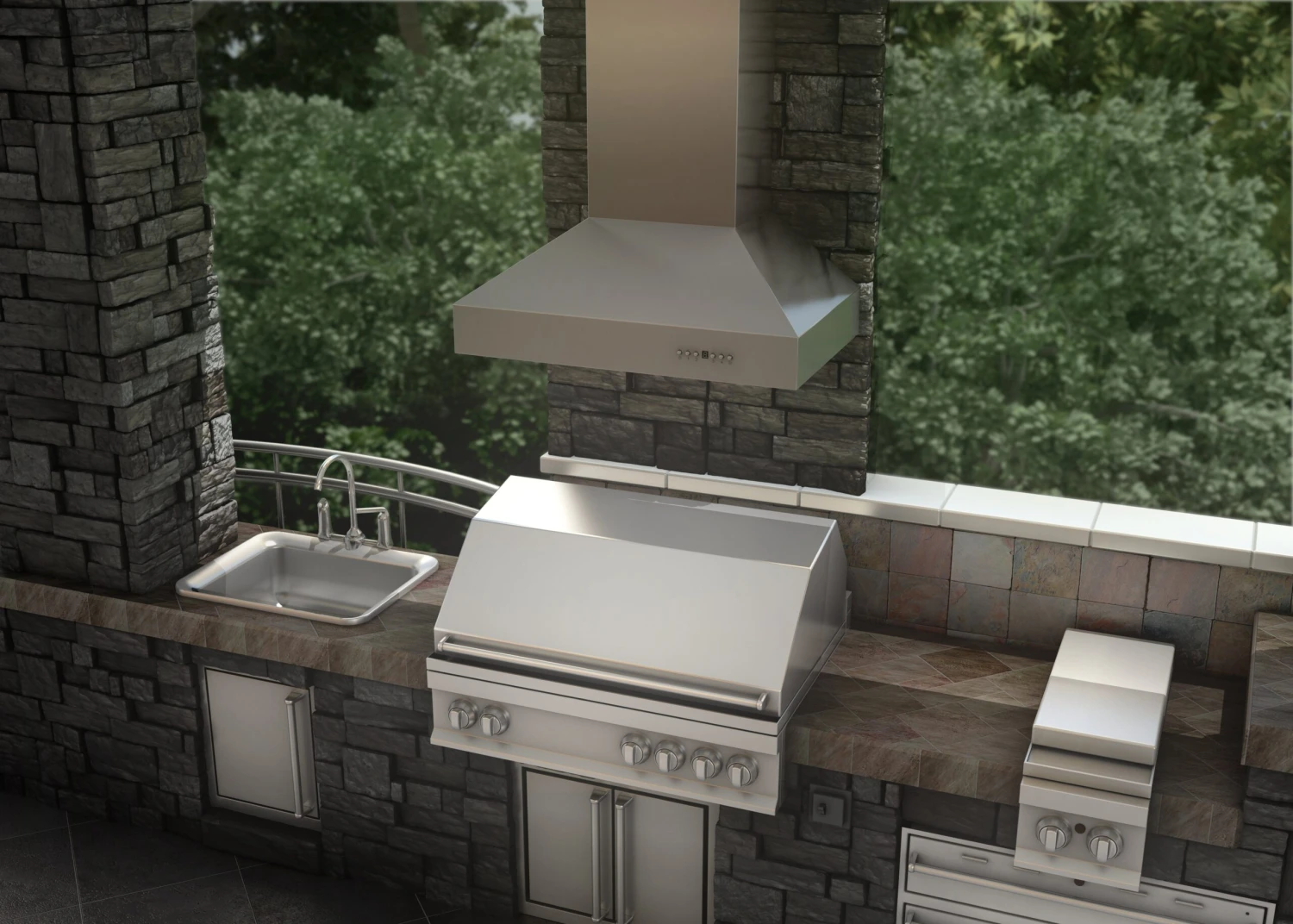

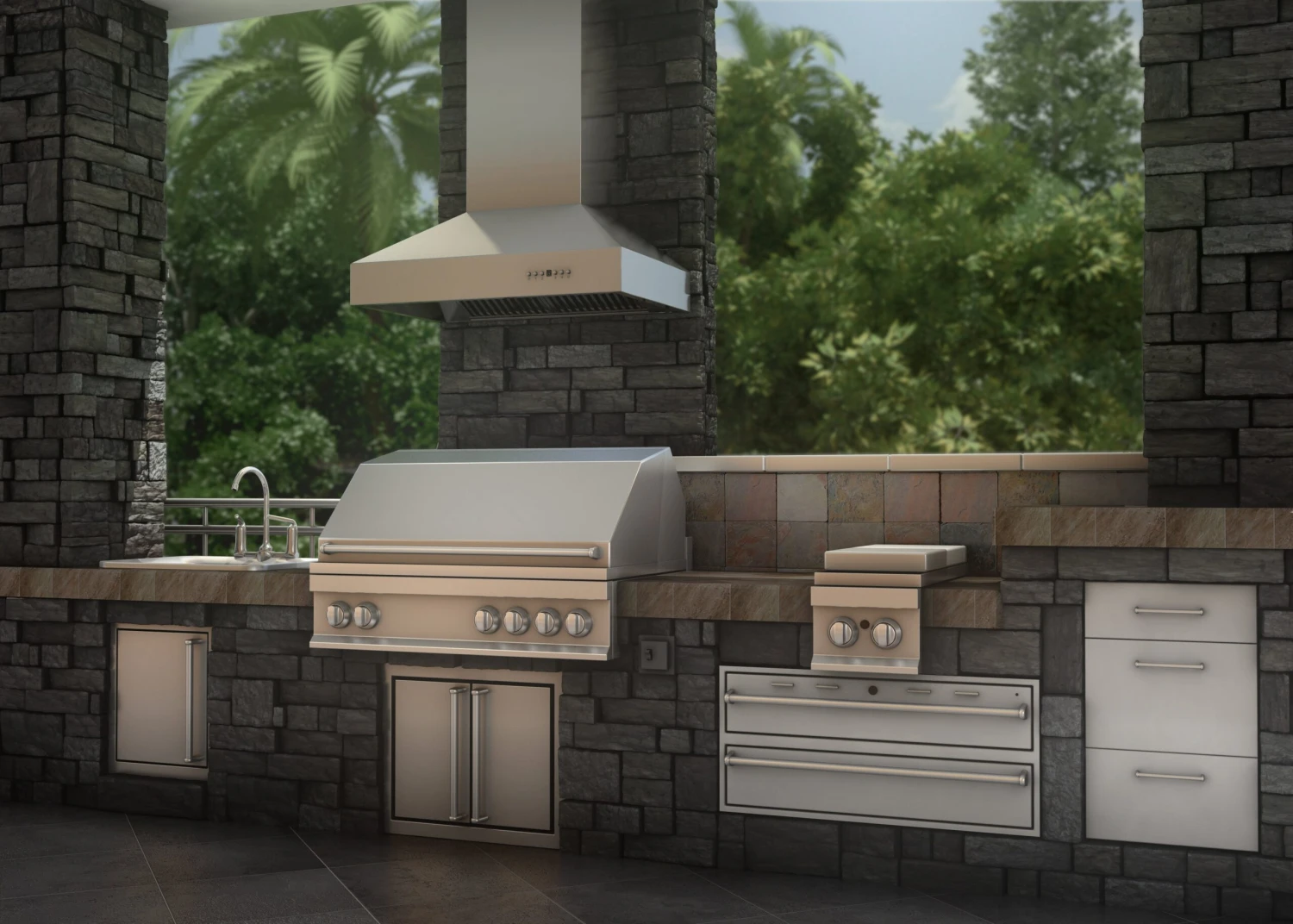

The ZLINE 697-304 professional wall mount stainless steel hood designed to be both elegant and powerful, featuring the industry’s only lifetime warranty motor. This hood is made from 304 grade stainless steel, making it approved for outdoor use. Its durable construction, modern design, and lifetime warranty motor – a ZLINE exclusive – guarantee a range hood with a timeless design that will last a lifetime.

This hood contains many unique features, such as:

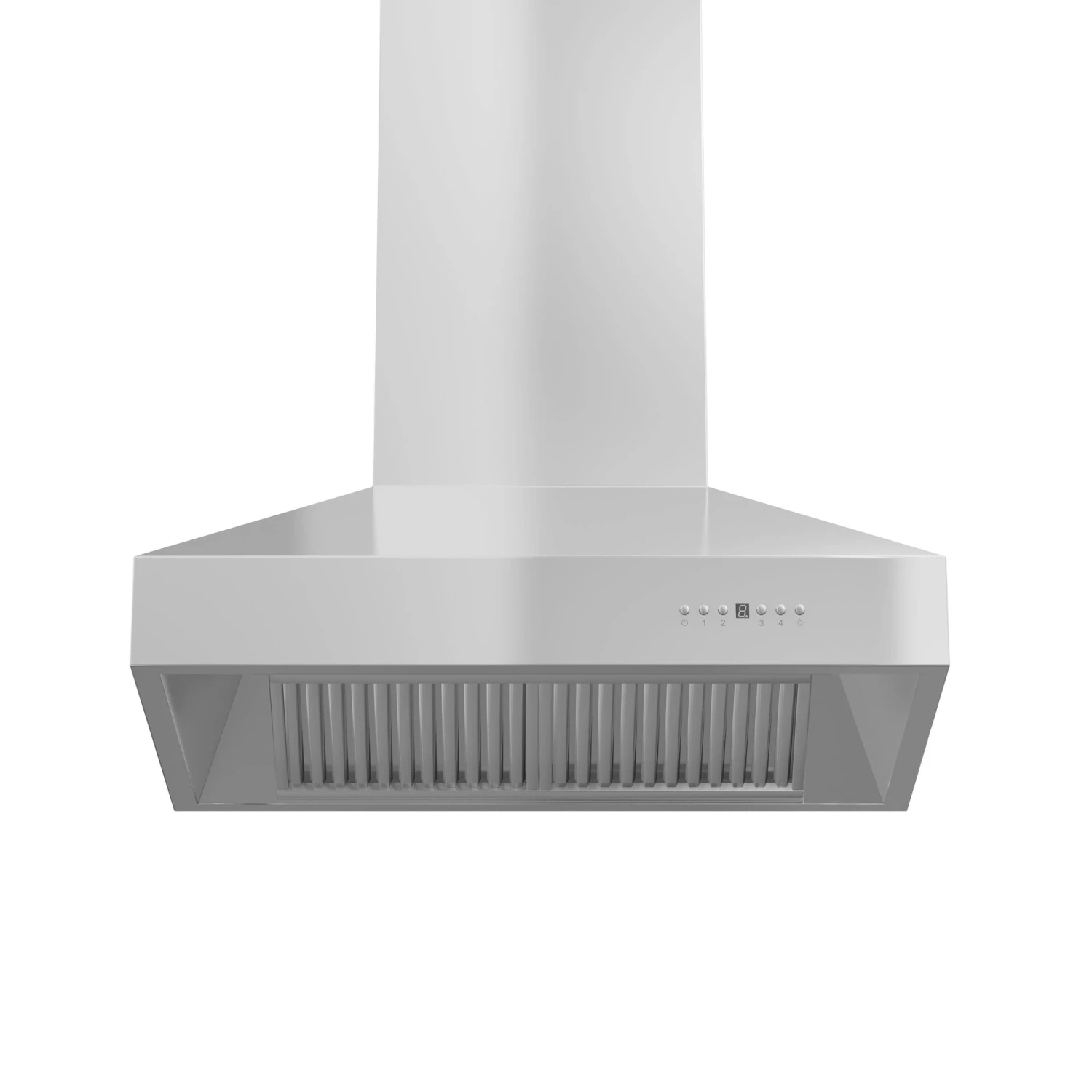

• Dishwasher-safe stainless steel baffle filters
• Built-in LED lighting
• High performance 4-speed motor
• Includes chimney

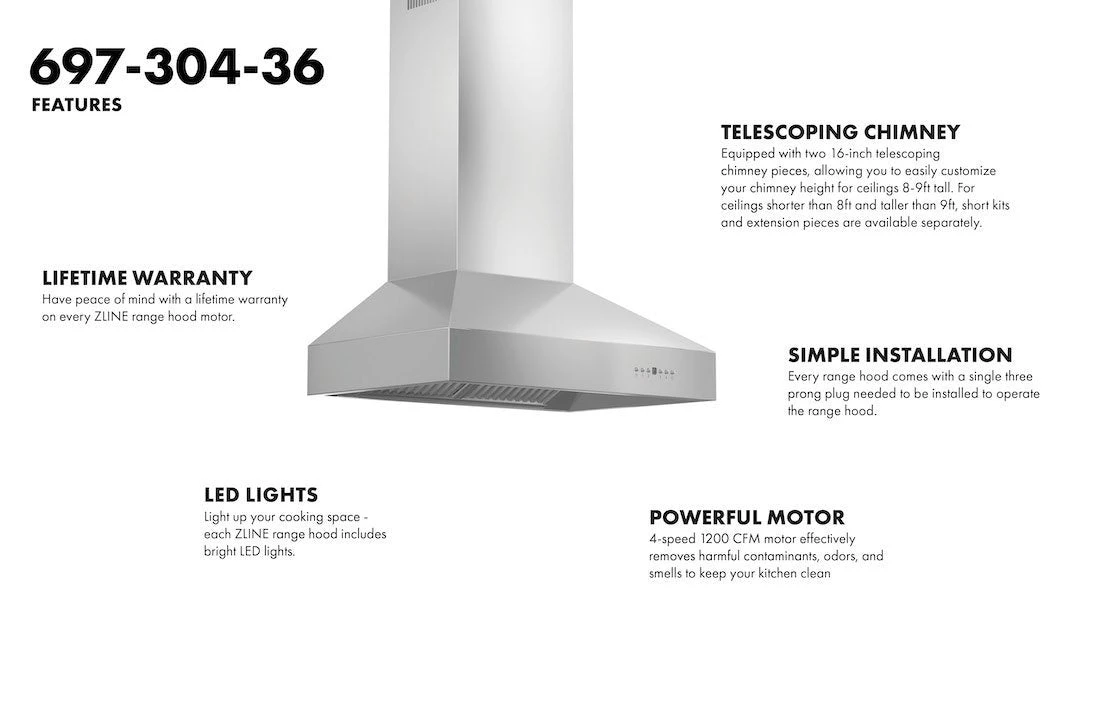

All ZLINE range hoods come equipped with everything needed to easily install and use, including two 16-inch telescoping chimney pieces, allowing a fit for most ceilings between 8 and 9 feet. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

ZLINE is the industry leader in range hoods and stands by the quality and longevity of their stainless steel range hoods.

Range Hood Decibel Levels

ZLINE Range Hoods are supposed to be seen, not heard. That’s why at most speeds, our range hoods are quieter than your average conversation. Rest assured that your new range hood will not be interrupting your dinner party or when you’re helping with homework.

Chimney Sizing

ZLINE Range Hoods are designed to fit the majority of kitchens right out of the box. Some kitchens with shorter ceilings do need a shortening kit or an extension kit depending on ceiling height. All our stainless steel hoods come with two telescoping chimneys to ensure the perfect fit. For our Designer Series hoods, we provide a one-piece chimney that can be cut to size.

Additional Information

Size:  30 Inch, 36 Inch, 42 Inch, 48 Inch,54 Inch, 60 Inch

Specifications

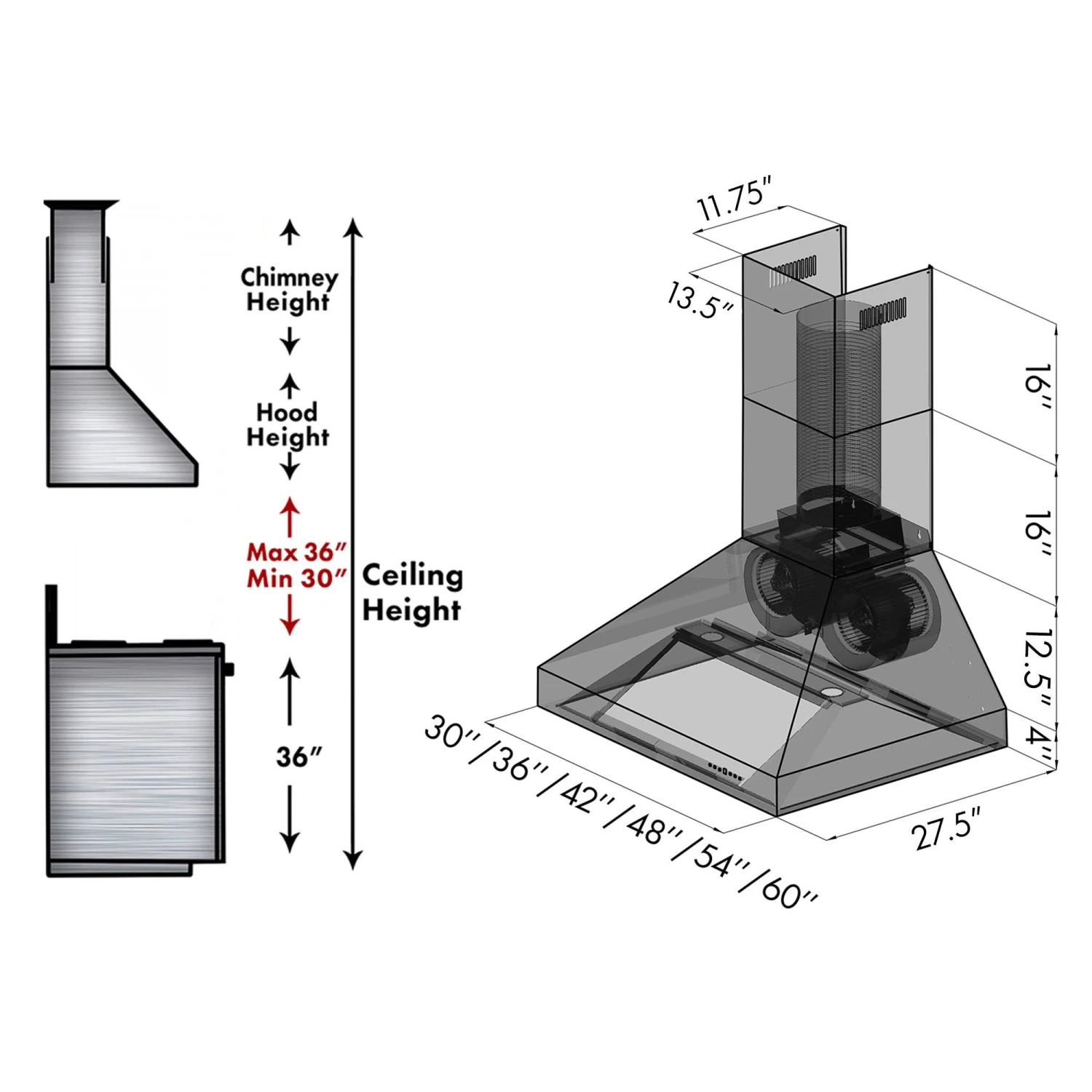

Brand: ZLINE Kitchen and Bath Dimensions

• 697-304-30: 30″ W x 27.5″ D x 16.375″ H

• 697-304-36: 36″ W x 27.5″ D x 16.375″ H

• 697-304-42: 42″ W x 27.5″ D x 16.375″ H

• 697-304-48: 48″ W x 27.5″ D x 16.375″ H

• 697-304-54: 54″ W x 27.5″ D x 16.375″ H

• 697-304-60: 60″ W x 27.5″ D x 16.375″ H

Chimney: 13.5″ W x 11.75″ D x 16″ H (x2) (Telescoping)Chimney Short Kit and Extension(s) Available:Short Kit (2-12″) ~7-8 ft. Ceilings1 PC Extension (1-36″ + 1-16″) ~9-10 ft. Ceilings2 PC Extension (2-36″) ~10-12 ft. Ceilings

Venting Size: 6″ Outlet (Transition piece with backdraft damper to round ducting included)

Charcoal Filters (not included) available for ductless/recirculating option.

Airflow (Q/L/M/H):

• 697-304-30: 120/240/320/400

• 697-304-36: 280/460/670/1200

• 697-304-42: 280/460/670/1200

• 697-304-48: 280/460/670/1200

• 697-304-54: 280/460/670/1200

• 697-304-60: 280/460/670/1200

Lighting: LED Lights

Noise Level: 20/29/34/41 (Decibels)

Voltage: 110V/60HZ

Motor: High Performance 400 CFM/4-Speed Motor

Mount Type: Wall Mounted

Speeds: 4 Speeds

Control Type: Speed/Timer Panel with LCD (3 Minute AutoTimer with Delayed Shutoff)

Material: 19g #304 Stainless Steel

Warranty: 3 Year Parts Warranty

Click Here to View Manual
